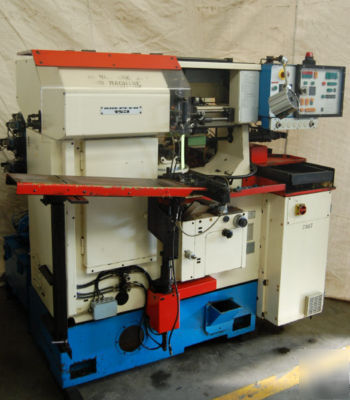

Koepfer univ horiz gear hobbing & worm milling mach
New 1985, Serial #153142, Model 153B
- Automatic shifting hob-head with +/- 40-degree
swivel range with 210 to 1680 rpm spindle speed
selectable with the same or opposite feed direction.
- Solid state PC control b Klockner Moller in lieu
- Electrical equipment for operation on 380 volt,
- Special index system (2:45) for workpieces with
small numbers of teeth. Min number of teeth to be
cut = 6 in lieu of standard index mechanism.
- Interchangeable axial travel stop dog rail for
recurrent manufacturing. In lieu of standard
Maximum pitch.......................... DP 12 (module 2,0)
Workspindle and hob.................... 16-3.4" (4-87mm)
Automatic loading...................... 3.15" (3.9") (80mm /100mm)
Maximum hob diameter................... 1.732" (44mm)
in/rev (mm/rev)........................ .004-.200" (0,1-5,0mm)
Net weight approx...................... 6,300 Lbs (3,000 kGs)
Main motor power consumption........... 2.2 kw (2.2 kw)
