Esl 1505 fire panel

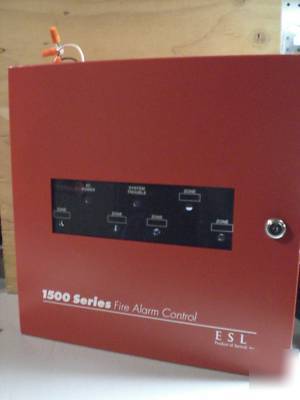

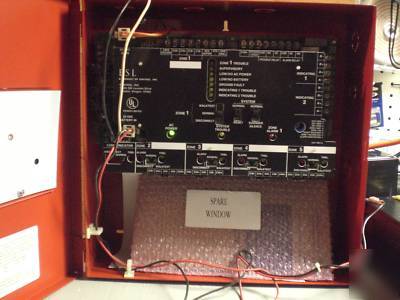

ESL 1505 Fire Panel. used boards in a new cabinet. The fire panel has no
ESL 1500 Series Fire Alarm Control Panels provide one (1501), three
(1503) or five (1505) conventional initiating circuits and two alarm
indicating circuits. All initiating and indicating circuits supervise
conventional two- or four-wire, Class A or Class B wiring loops. All
zone inputs and outputs are power limited.
The basic control panel, Model 1501, includes the system enclosure with
removable door, and the Basic Master Board (BMB). The BMB provides all
functions required for a single zone system including: an integral power
supply (24VDC), battery charger, battery supervision circuitry, AC
brown-out circuitry, system control switches, operating and diagnostic
indicators, one man walktest, alarm verification, and auxiliary alarm
and system trouble dry relay contacts. The Models 1503 and 1505 include
one or two dual Zone Expander Modules (1500-ZEM), respectively.
ESL 1500 Series Fire Alarm Control Panels are designed to meet real
world"installation and maintenance needs. To meet specific project
requirements, a variety of optional modules are available. The cabinet
(14" high and wide) includes: capacity for five initiating circuits, two
indicating circuits, numerous option modules and standby batteries.
