10 x DS18S20 dallas 1 wire digital temperature sensor

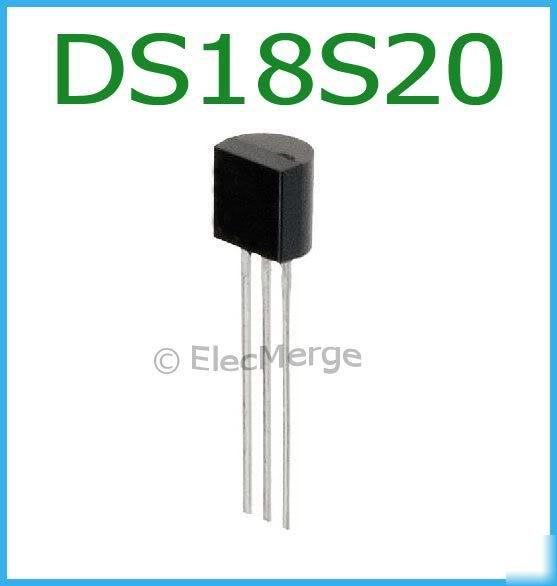

DS18S20 Dallas Digital Thermometer
DS18S20 Dallas 1-wire Digital Thermometer
The DS18S20 Digital Thermometer provides 9 bit temperature readings which indicate the temperature of the device.
Information is sent to/from the DS18S20 over a 1 Wire interface, so that only one wire (and ground)needs to be connected from a central microprocessor to a DS18S20. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source.
Because each DS18S20 contains a unique silicon serial number, multiple DS18S20s can exist on the same 1 Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.
* Unique 1 Wire interface requires only one
port pin for communication
* Multidrop capability simplifies distributed
temperature sensing applications
* Requires no external components
* Can be powered from data line. Power supply range is 3.0V to 5.5V
* Zero standby power required
* Measures temperatures from 55 C to
+125 C. Fahrenheit equivalent is 67 F to
* 0.5 C accuracy from 10 C to +85 C
* Temperature is read as a 9 bit digital value
* Converts temperature to digital word in
* User definable, nonvolatile temperature
* Alarm search command identifies and
addresses devices whose temperature is
outside of programmed limits (temperature
* Functionally compatible with DS1820 1-Wire
* Applications include thermostatic controls,
industrial systems, consumer products,
thermometers, or any thermally sensitive
10 x DS18S20 1-Wire Digital Thermomerter
* 10 x DS18S20 1-Wire PARASITE-POWER DIGITAL THERMOMETER
* DS18S20 Data sheet & Schemetic
