#p-251 pfauter universal gear hobbing machine #25170

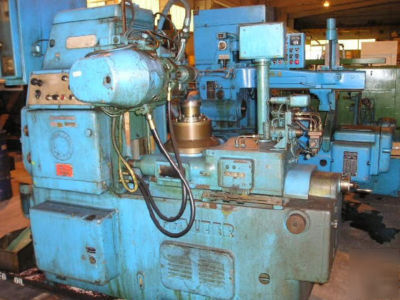

#P-251 PFAUTER UNIVERSAL GEAR HOBBING MACHINE
Universal Hob-Head w/+/- 60-Degree Swivel
Conventional, Diagonal, Tangential & Climb
Nine (9) Step Feed Drives For Axial, Radial
Differential Mechanism For Helical Cutting
Infinitely Variable Hob Speeds
Rapid Traverse For All Slide Movements
(Machine Without Outboard Support Column & Tailstock)
Power Forced Lubrication To All Elements
Maximum Work Diameter.................. 10"/(250mm)
Maximum DP (Module) Steel.............. 6 DP/(4 Module)
Maximum Face Width..................... 8.75"/(220mm)
Minimum Number Of Teeth Cut............ 6
Maximum Center Distance Between Hob
Arbor & Work-Piece..................... 8.75"/(220mm)
Minimum Center Distance Between Hob
Arbor & Work-Piece..................... .4"/(10mm)
Diameter Of Work Table................. 10"/(250mm)
Diameter Of Work Table Bore............ 2.5"/(63mm)
Diameter Of Hob Arbor.................. 1.25"/(30mm)
Maximum Diameter Hob................... 4.87"/(125mm)
Maximum Length Of Hob.................. 5.22"/(130mm)
Maximum Amount Hob-Shift (Tangential).. 4.5"/(115mm)
Hob Speed Range........................ 80 To 500 RPM
Feed Ranges: (12-Steps) Per Rev Of Work:
Axial.................................. .013"-.160"
Axial.................................. (00.32-4.0 mm)
Radial................................. .003"-.040"
Radial................................. (0.08-1.0 mm)
Tangential............................. .006"-.080"
Tangential............................. (0.16-2.0 mm)
Output Of Coolant Pump Per Minute...... 13 GAL
Output Of Coolant Pump Per Min......... (50 Liters)
Main Motor Output...................... 7.5 HP/(5.5 kW)
Total Connected Load................... 10 kW
Approx. Machine Net Wt................. 7,600 LBS
Approx. Machine Net Wt................. (3500 kG)
Machine Dimensions..................... 100"x64"x72"
Machine Dimensions..................... (2500x1600x1800)
NOTES: Suitable For Cutting Spur & Helical Gears,
Pinions, Splines, Sprockets, Worm Gears, & Other
Workpieces Of Similar Profile Up To 10" (250mm)
PRICE: F.O.B. CINCINNATI, Ohio......... $9,500.00
