Shunt precision quad inline .01OHM 1% 20AMP = 200MV
Shunt Precision Quad Inline .01ohm 1% 20Amp = 200mV

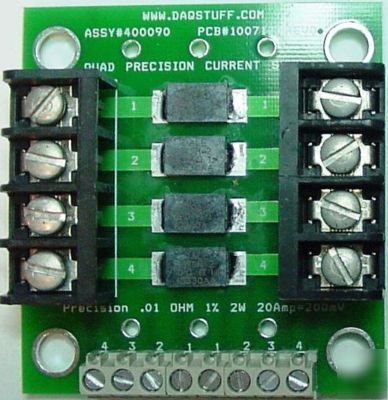

Quad Inline Shunt Assy - 4 Independent Shunts - 20 Amp @ .010 ohm = 200mV
* Being able to monitor the current in an extremely powerful tool
* Compact precision quad shunt 2.2" x 2.25" PCB Assy
* This is probably the most common shunt value used because of the 100 to 1 ratio or 2 decimal places
* Precision .01 ohm 1% shunt 2 watt part # WSR2R0100FTA Mouser $1.34 each qty 1500
* NOTE: Other shunt values can be made upon special request
