Hp/agilent 4278A capacitance meter 1KHZ - 1MHZ

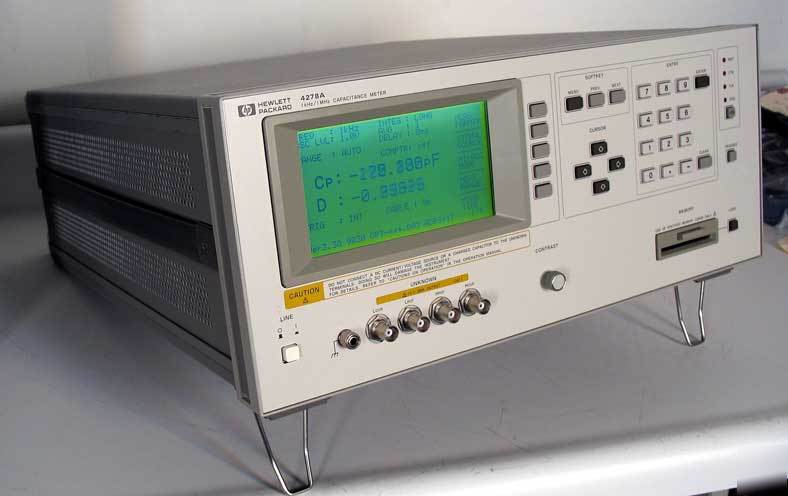

HP/Agilent 4278A Capacitance Meter 1kHz - 1MHz
Options: 101 HP-IB Interface, 202 Handler Interface
Operation & Service Manuals on CD-ROM
The Agilent 4278A 1 kHz/1 MHz capacitance meter is a high-speed, highly reliable, precision test instrument aimed at incoming/outgoing capacitor inspection applications on the production line and in quality control. The Agilent 4278A will improve test efficiency by performing comparative measurements of low to medium value capacitors (up to 200 F - a range that covers most ceramic and film capacitors). The Agilent 4278A's standard measurement frequencies and oscillator output level are 1 kHz/1 MHz and from 0.1 V to 1 V in 0.1 V steps, respectively.
The built-in comparator function of the Agilent 4278A gives you the ability to sort parts into ten bins. A high-speed HP-IB interface and an optional handler interface are available fir combining the Agilent 4278A with an automatic handler and an external computer, to build a total solution for automatic testing and data acquisition and analysis.
* Measurement speed: 6.5 ms/10 ms/21 ms
* Measurement parameters: C-D, Q, ESR, G
* C-D measurement accuracy: 0.07%, 0.0005(1 kHz, 21ms);.0.5%, 0.0002(1 MHz, 21 ms)
* High resolution: 6 digit, D:0.00001
* Intelligent built-in comparator: 10-bin sorting
* Option 101 installed - provides HP-IB Compatibility
Option 201 installed - provides Handler Interface
Cosmetically and physically this unit is in very good condition, is tested and works well.
Reconditioned, and Calibrated to meet manufacturer's specifications by one of our expert certified technicians.
