Ir-heating bga rework station lk-F8

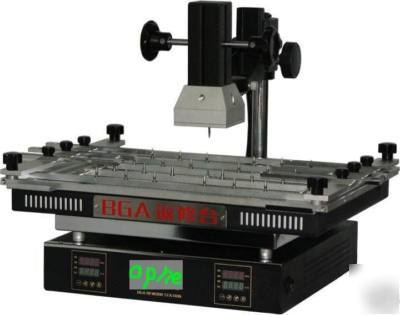

IR-Heating BGA Rework Station LK-F8
Dimensions: length 410mm width 400mm high 320mm
Bottom heating size: 360*320mm
This station can be used for the repairing of the large circuit board such as mainboards of computer, game machine and communications equipment.
The machine can be used to do the drying of the circuit board.
The lower part of this machine is the preheating station which is used for preheating the PCB boards to ensure that the PCB board is not deformed.
Upper heating temperature: 260
1. Since the date of purchase, we are responsible to replace this product in one year, after one year, the repair parts and materials will be charged.
2. The modifications on the product structure, circuit by users are not include in the scope of the warranty.
3. In the warranty period, if there is the problem in the quality of the product itself, we will replace the parts or repair free of charge, but the transportation fee will be charged.
4. For the circumstances cause by the fault of users, such as operation error, self-changing the internal structure, the product will not be exchanged.
5. The device is not waterproof, it is strictly prohibited to be watered.
6. The normal operating voltage of the machine is 220-230V; please do not use incorret power supply.
7. In using this equipment, please first ensure the effective grounding to prevent power leakage.
8. In the operation of this equipment, the pre-heating station and heating head are at a high temperature, do not contact these sites with the skin to prevent scalding.
PS : the welding common knowledge
3. The temperature sensor of LK-F3 has not directly contact with circuit board and it is designed to detect the air temperature around the circuit board, and the value that thermometer shows is not the actual temperature of the circuit board.
