New * sealed* allen bradley ab 1762-IR4 /a 1762IR4 01/10
Rockwell Automation > PLC & HMI > Small Controllers > MicroLogix > 1762-IR4/A
Allen-Bradley 1762-IR4 MicroLogix Expansion RTD/Resistance 4 Channels Input Module, Series A
Allen-Bradley 1762-IR4 MicroLogix Expansion RTD/Resistance Input Module, Number of Inputs: 4 inputs; Accepted Inputs: RTDs - Platinum (385 and 3916), Copper (426), Nickel (672 and 618), Nickel-Iron (518), Resistance Ranges: 0-3000 Ohm; Bus Current Load, Max.: 40 mA @ 5V DC, 50 mA @ 24V DC; Accuracy @ 25 C (77 F): RTD Inputs - 0.2 0.6 C ( 0.36 1.08 F), Resistance Inputs - 0.5 1.5 Ohm; Resolution Across Full Range: Input filter and configuration dependent; Channel Update Time: 6-303 ms per channel.
Allen-Bradley 1762-IR4 MicroLogix expansion I/O module is compatible with MicroLogix 1100, MicroLogix 1200, and MicroLogix 1400 controllers. The 1762-IR4 module can be installed to the right of the controller, either on a panel with two mounting screws or on a DIN rail. Digital and analog I/O modules can be used in many combinations, up to the maximum supported by the controller. The current loading capacity of the controller s built-in power supply may limit the number of I/O modules that can be connected.

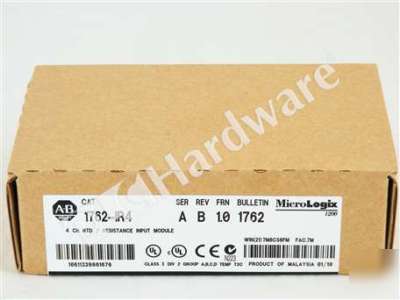

One New Factory Sealed Allen Bradley 1762-IR4 Series A, MicroLogix Expansion RTD/Resistance 4 Channels Input Module.
The unit is Series A, Rev. B, FRN 1.0, Pkg Date 01/10.
