New lincoln K2708-1 bulldog 140 welder & generator ( )

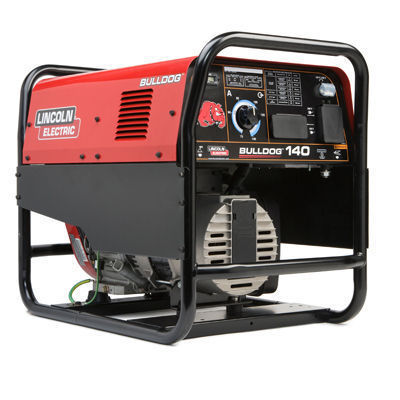

Lincoln K2708-1 Bulldog 140 Welder and Generator
BULLDOG 140 Robust Generator / Welder is Two Tools in One!
The BULLDOG 140 is a great idea for home, farm, contractors, maintenance, or business power outage emergencies. You get two great tools in one for double the value. First, maximum AC generator power at the lowest possible weight - that makes it easy to get auxiliary power where you need it - Fast! You also get 140 amps of AC welding power for many common maintenance, repair and construction projects. Add reliable engine choices and a rugged standard roll cage and you get one versatile tool you can use all year long!
* Sizable 5500 watts surge (4000 watts continuous) AC generator power keeps your lights, tools, heaters, sump pumps and appliances running during emergencies or for any project - anytime, anywhere.
* 140 amps AC welding output is ideal for 3/32" (2.5mm) and 1/8" (3.2mm) diameter electrodes. 1-1/4" (32 mm) Rugged tube frame roll cage adds protection and many lift points.
* 2- 120 Volt AC Receptacles (NEMA 5-20R) 1- 240 Volt Receptacle (NEMA 6-50R)
* Single-range output control makes it easy to dial in the right welding setting for your application.
* 6.8 Gallon (25.7 liter) fuel tank.
* Hour meter on control panel to monitor runtime for scheduled engine maintenance.
* Circuit breakers provide secure overload protection for the generator and your tools.
* Three-year Lincoln warranty on welder (engine is warranted separately by the manufacturer).
Dimensions (in) H x W x D : 25.5 x 21.1 x 31.5
Dimensions (mm) H x W x D : 647 x 536 x 800
http:// /images/Lincoln_K2708-1_Bulldog_140_Generator_&_Welder.jpg
Rated CC AC Output Amps/Volts/Duty Cycle
