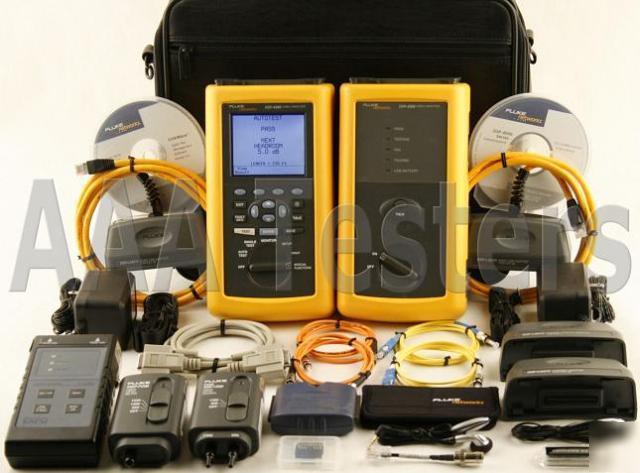

Fluke dsp-4100 CAT6 sm / mm fiber cable tester DSP4100
* Fluke DSP Series Calibration Module
* (2) Fluke Basic Link Adapters Cat5/5e
* (2) Fluke Channel Adapters Cat5/5e/6
* Fluke DSP-FOM (850nm, 1300nm, 1310nm & 1550nm Meter)
* Fluke DSP-FOS (Optical power source generates both 850nm and 1300nm wavelengths)
* EXFO FLS-130A (Optical power source generates both 1310nm and 1550nm wavelengths)
* DSP-FOM User Manual On CD-ROM
* DSP-4100 Series User Manual CD-ROM
FLUKE Networks DSP-4100 Digital Cable Analyzer with SM & MM Fiber Test Kit
Test & Certify Cat5/5e Cat6 LAN Cable, Multimode 850nm/ 1300nm & SingleMode 1310nm/ 1550nmn Fiber Installations.
This Kit Includes 4 Battery Packs!
Fluke Digital Signal Processing technology delivers consistent, repeatable accuracy Superior diagnostics make troubleshooting fast and easy.
Graphic reports show professional certification results
Memory card allows instant data hand-off
The DSP-4100, the newest member of Fluke Networks' family of Digital Cable Analyzers, offers the same superior diagnostics and digital test accuracy of the DSP-4000, with the addition of comprehensive management capabilities.
Like the DSP-4000, the DSP-4100 certifies copper and fiber cabling installations to all current industry and application standards, as well as proposed TIA Cat 6 and ISO/IEC Class E performance standards.
If you own a DSP-4000, you can upgrade to a DSP-4100 with the DSP-4100E Upgrade Kit. The kit contains instructions for contacting Fluke Networks to schedule your upgrade with an authorized Fluke Service Center. A technician will upgrade your DSP-4000 main and remote units and return them with a removable 16-MB memory card, PC reader for the card, Fluke's Cable Manager Software, version 4.0 and a user manual.
Fluke Networks keeps its eye on the future - so you don't have to.
From superior diagnostics and extendible digital platform to extensive reporting capabilities, the DSP-4100 provides you with everything you need to test, certify and document copper and fiber installations - today and tomorrow.
Powerful, High Definition Diagnostics
The DSP-4100 helps you quickly identify and locate opens, breaks, short circuits, and anomalies in the cabling link. One touch of the FAULT-INFO key and the DSP-4100 automatically diagnoses the cabling faults while graphically displaying the link and location of the defect. Utilizing Enhanced High Definition Time Domain Crosstalk (HDTDX ) and High Definition Time Domain Reflectometry (HDTDR ), the DSP-4100 can precisely locate the position of a crosstalk problem any distance along the link - measured in feet or meters - from the tester. These high definition diagnostics make the DSP-4100 the industry's first cable tester to pinpoint sources of crosstalk or return loss anywhere along an entire link length.
* Fluke Networks' Fiber Test Kit measures power or power loss in optical fiber links used in premise wiring and LAN networks.
Verify Fiber Optic Performance:
* The DSP-FTK is compatible with the DSP-4000 Series of cable testers (DSP-4000 / 4100 / 4300).
* Use the Fiber Optic Power Meter (DSP-FOM ) to measure optical power, in dBm or mW. You can also measure optical power loss (expressed in dB). The power loss measurement (or attenuation) compares the measured light energy at the end of the link (output) to the reference level at the input (the light source).
* This loss measurement result delivers a true optical loss measurement for the link by subtracting the loss associated with the fiber optic patch cables. You can specify the Pass/Fail limit for loss and also the direction (A-B or B-A) of the measurement.
* You can record and store any combination of copper or fiber optic Autotest reports with the Fluke DSP-4000 tester. Each test report can be assigned a unique, user-definable label, and can be downloaded to a PC or printed directly from the cable tester to a serial printer.
* Test reports contain wavelength, measured loss, loss limit, test direction and reference level. The fiber test results may be saved in the tester's memory using a cable name of up to 18 characters long.
