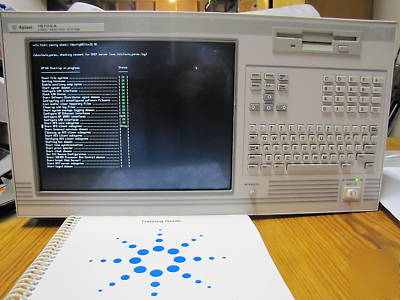

Agilent hp 16702A logic analysis system
This is a used item that was last calibrated in September of 2009 and was found to work perfectly.
It includes 2 of the E5346A High Density Probe Adapters and 2 of the 16556D Reference Clock Cards. It also includes Options 003 and 8ZE.
I have the manual with this and the Online Help CD as well. I am including the mouse. There are 2 legs (right-hand side, front and back) that are missing.
Also, you can contact me if you would like to see more photos of this unit.
The HP / Agilent 16702A is a 5 slot logic analysis mainframe with 4GB hard drive, 1.44MB 3.5" floppy drive, 3 button mouse, keyboard, Ethernet port, SVGA video output, parallel port, single-ended SCSI-2, built in 10.3" color display, and 2 emulation probe slots.
The Agilent E5346A 38-Pin Probe provides a convenient and easy way to connect an Agilent logic analyzer to your target system. With difficult packages to probe such as BGA and TQFP, the E5346A provides an alternative to directly probing the chip.
The E5346A provides a high density connection to route your important signals to the logic analyzer. Simply design the AMP Mictor connectors onto the board for the critical signals you need. This process consumes a minimal amount of board space.
This unit has the following It provides 32 channels of logic analysis per connector with two clocks.
Isolation for the logic analyzer is located right at the probe tip for the most convenient and best measurement results.
The 16556D State and Timing Analysis Module provides 68 channels/card, 340 channels/timebase and a memory depth of 2M, 4M (half channel mode). The state-analysis rate is 100MHz.
