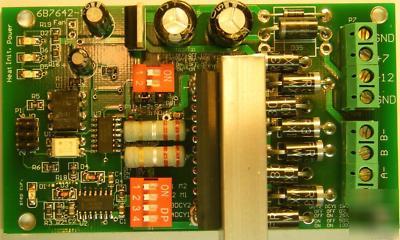

1-axis TB6560 cnc driver board for 4-axis/5AXIS cnc kit
1-AXIS (TB6560) CNC STEP MOTOR DRIVER 's features:
HUGE improvements from TA8435 based boards **
Resolution: Full step, 1/2, 1/8,1/16 selectable via switch for each axis.
Absolute maximum ratings: 40VDC @ 3.5 amps(peak)/phase motor output per axis *
PC parallel port DB25 connector has being installed onboard.
Adjustable motor current at 100%, 75%, 50%, 20% of full current by on-board switch
Supports different 4 Wire, 6 Wire and 8 Wire stepper motors for 3 axis drive.
Built-in overheat protection circuit in TB6560
This board is tested through KCAM, Mach 2/3, touborCNC CNC software.
This board has been used in different design 3D engrave machines, millers, routers.
1KV, 10 Mbps high speed Optocoupler for full elimination to protect Computer and driver board.
Step Current(r) Technology included: Step Current technology is used to decrease the current upto 1/2, when motors are in idle for all axis so as to protect expensive step motor and driver board for long time running.
* One 1-Axis CNC driver boards
We also sell additional 1-axis driver board, interface board, cables for extension of our 4 axis driver boards, and other components.
