boje cdd-11-k ir media sensors for solvent printer
BOJE CDD-11-K IR MEDIA SENSORS
There is a wiring diagram on the item label. On the rear of the Sensor there is what appears to be an LED Light and what appears to be an adjustment screw slot. Please see another listing that I have for a very similar Sensor with a different connector. I also have listed the Media Control Boxes ( Item # 330238776485 ) that these appear to plug into.
I don't know if these are new or used. They look new, but I'm not sure.
Brown => + Voltage (excitation)
Black => Output signal ["off" with no IR reflection, "on" with IR reflection (+ excitation voltage)]

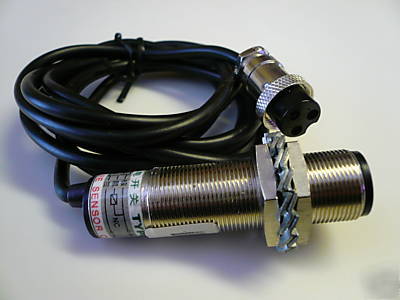

I got these, as well as many other items I am and will be listing, from a small R&D Company that went out of business. I know very little about any of these items, but will do my best to respond to any questions that you have. I do know that at one time they had a number of large solvent printers, as a result I also have a number of odds, ends, parts & supplies that go to these, amongst all this stuff. If you need something please feel free to inquire. Photo is an actual one, of a randomly chosen one, of the Sensors and Specs are from the item label.
