Smt to dip adaptors, 0.025", 8-20 pin converter smd #20
All pin counts from 8 to 20 pins
fits both Narrow AND Wide IC bodies

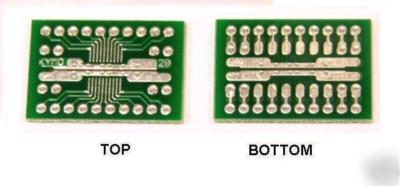

This listing is for style #20, shown below
For case: TSOP, SSOP, MSOP, narrow, wide, 8 through 20 pin
Row spacing: 0.300", or 0.600" selectable
Pin soldering: top side, bottom side, dual-mode
Thermal pad: Full, with stitched vias, 2-side
This is a TOP or BOTTOM solderd carrier.
For direct socketing to 0.600" Wide DIP sockets: Pins thru-hole soldered on the OUTER (0.300" accross) rows of pads. Use a solderless breadboard to hold headers in place while soldering. Avoid overheating, or header frame melts.
For direct socketing to 0.300" Narrow DIP sockets: Pins can be surface-soldered on the bottom of the PCB, using the INNER (0.300" accross) rows of pads. Pins do not emerge to the top side (except for the corner pins).
USEAGE (8 pin shown for illustration):
