Pressure transducer 1000 bar 15000 psi intersonde XP22
Pressure Transducer 1000 bar. Intersonde XP17

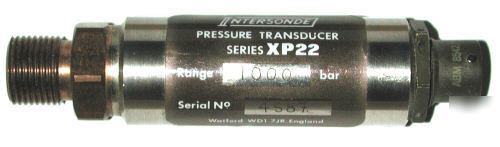

A strain-gauge transducer by Intersonde.
This is mechanically similar to the current XP22 range of Intersonde transducers now sold by Barnbrook Systems.
It differs in that it employs a 350 ohm bridge rather than the 600 ohm of the XP22 range and does not have the added resistor for calibration.
This transducer has been tested only at low pressure only since I do not have high pressure available.
For 30 kPa (4.2 psi) it produced 0.418mV with 6.0V excitation. Zero offset approx 200 V.
Therefore full scale output for 1000psi it would give 100mV approximately with the 6V excitation.
Electrical connection via bayonet style 6 pin fixed plug (mates with Mil-C-26482 size 10). Connection details supplied.
Mating connector not supplied but used one available at an extra 6 GBP.
Material in contact with medium is beryllium copper, body stainless steel.
Condition is good, but has been in use.
Some other ranges available as alternative - please enquire
Securely packed in protected box.
Bank Transfer to my Account in GBP only with all charges pre-paid.
