Hp agilent 3562A dynamic signal analyzer
HP AGILENT 3562A DYNAMIC SIGNAL ANALYZER

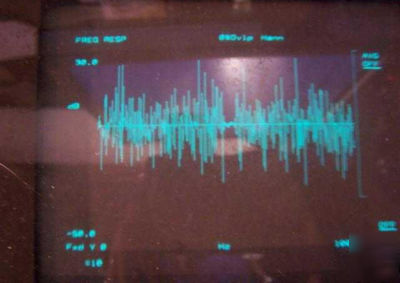

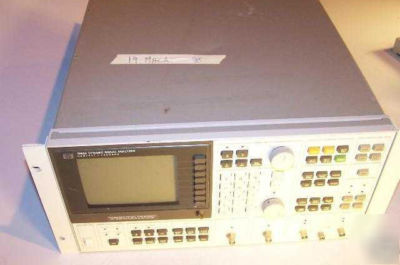

Fair physical condition, have some scuffs, scratches, and adhesive residue on the case. We tested this unit to power up status, and were able to get the screen to display, although it flickered. Display flicker in and out. Look like high voltage problem, some time works fine.
We could not test this unit further as we did not have the correct equipment to do so.

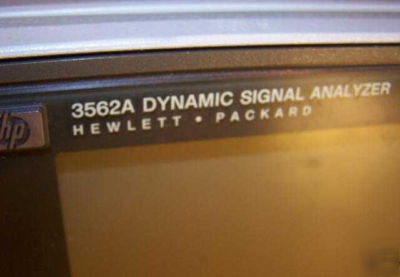

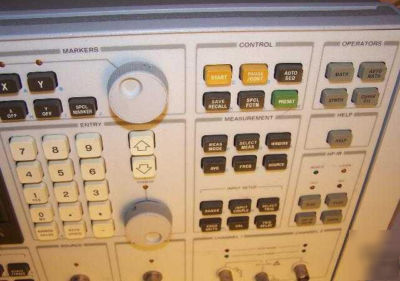

The HP / Agilent 3562A Dynamic Signal Analyzer is a dual-channel Fast-Fourier transform-based network, spectrum and waveform analyzer which provides analysis capabilities in both time and frequency domains. The DC to 100kHz frequency range, 150 dB measurement range and 80 dB dynamic range of the analyzer make it a powerful solution for testing and analysis in electronics, mechanics and electromechanical control systems.
* Internal source provides random noise, burst random, sine chirp, burst chirp, fixed sine, and swept sine
* Spectrum, network, transient analysis
* Vector averaging, waveform math, curve fitting, frequency response analysis
"We lack the means to do any other testing and cannot guarantee further functionality."
