Honeywell pilot module electrical blower switch control

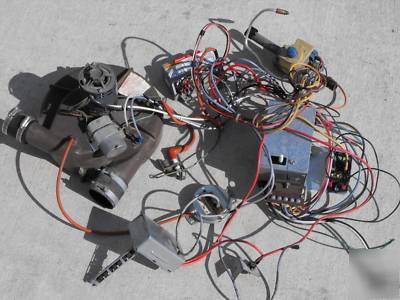

Entire Propane Furnace electrical wires/equipment
2. Honeywell Propane gas valve assembly
3. Honeywell S8610U 1003 Intermittent Pilot Module(see specs below)
4. Control Board (This is all out of a Whirlpool Furnace)
Honeywell S8610U 1003 Intermittent Pilot Module
The S8610U Universal Replacement Ignition Module is designed to provide easy field replacement of a wide range of intermittent pilot ignition modules manufactured by Honeywell, Robertshaw, Penn-Johnson and others. The S8610U Module provides ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces, residential boilers, and other heating appliances.
* Universal Honeywell Quality
* System uses rectification principle for flame sensing
Honeywell S8610U Universal Intermittent Pilot Module Features:
* For use with separate igniter and sensor or combination igniter-sensor. Q345, Q348, Q3451, Q3452, Q362, Q373 or Q381 Igniter-sensor recommended as combination igniter-sensor; Q179C with igniter and sensor mounted on one bracket; or Q345 Sensor with Q345, Q3451, Q3452, Q348, Q362, Q373 or Q381 Igniter-sensor recommended as separate igniter and sensor
* Can be used on natural or LP gas; provides 100 percent shutoff on ignition failure. Waits six minutes nominal following shutoff, then reinitiates the pilot ignition sequence. The ignition trial-shutoff-wait cycle repeats until the pilot lights or the call for heat ends
* Replaces numerous Honeywell and competitor modules
* Capacitive discharge spark output
* Temperature rating is -40 F to 175 F (-40 C to 79 C) when used with 1.0A of less main valve; -40 F to 165 F (-40 C to 74 C) when used with 1.0A to 2.0A main valve
