30 amps hansvedt hs-1 drillman edm hole driller, prog.
30 AMPS Hansvedt HS-1 DRILLMAN EDM HOLE DRILLER, PROG.
30 AMPS Hansvedt HS-1 DRILLMAN EDM HOLE DRILLER, PROG. "Z" AXIS, 3X DRO,

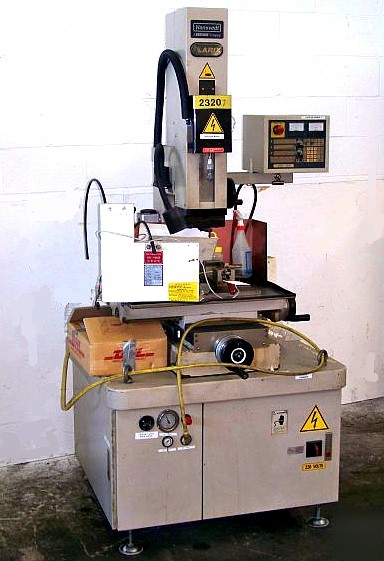

Hansvedt EDM Hole Drilling (Hole Popper) EDM Machine
Model" HS-1 "Drillman" S/N: 961080 Mfg: July 1997
- Work Table Size ...................... 17.7 x 8.2"
- Maximum Workpiece Weight.............. 435 lbs.
- Table Travel, Longitudinal ........... 11.8"
- Table Travel, Cross .................. 7.8"
- Ram Travel, Z Axis ................... 13.5
- Maximum Workpiece Size ............... 15.7" x 7.8" x 7.8"H
- Useable Electrode Diameters........... 0.008 - 0.117
- Machine Dimensions.................... 40 x 40 x 80 H
- Machine Weight........................ 1,325 Lbs.
- Maximum Power Input 3.5KVA, Input Voltage AC 3 phase,
- Maximum Machining Current............. 30 Amps
Dielectric Fluid Supply Unit(Built-In):
- Dielectric fluid...................... Tap Water / Additives
- Tank Capacity......................... 5 Gallons
Digital Display for On Time, Off-Time, Current, Voltage
Servo Controls with Auto, Edge-Finder, Servo Speed, Gap Adjust
Handwheels for X-Y Table Movements, .0001" Handwheel Grad.
Rotating Spindle with Drill Chuck (3mm Capacity)
