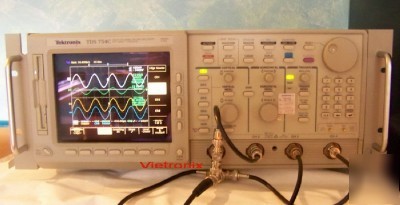

Tektronix TDS754C 500GHZ 2GSA/s + opts: 13, 1F, 2F, 2C
Tektronix TDS754C 500GHz 2GSa/s + Opts: 13, 1F, 2F, 2C
Condition: Excellent physical condition. 30 days warranty, please see Term of Sale for more detail.
Unit Included: Options - Mount Rack - 13 - 1F - 2F - 2C. The unit will also comes with a CD-ROM of Programming and User Manuals.
* The Tektronix TDS754C 500Mhz Digitizing Oscilloscope is designed to keep pace with current and evolving needs in advanced electronic design and debug. It is also a powerful tool for communication design and R&D applications. At over 400,000 waveforms per second, the Tektronix TDS754C has the fastest waveform capture rate available on an oscilloscope. It allows you to instantly view even the rarest signal events. Like the other members of the TDS series, the TDS 754C has a well-rounded combination of a graphical user interface, high-fidelity acquisition, advanced triggering, automatic measurements, and complementary measurement accessories.
* Sampling Rates to 2 GS/s.
* Up to 400,000 Waveforms/s.
* 8-Bit Vertical Resolution.
* over 11-Bits with Averaging, and Over 13-Bits with Hi-res.
* 1 mV to 10 V/div Sensitivity.
