Saes mono torr argon gas purifier monotorr PS4MT3-r-1
SAES MONO TORR ARGON GAS PURIFIER MonoTorr PS4MT3-R-1
Model No. PS4-MT3-R1 / PS4MT3R1
Excellent Barley Used Condition
SAES Getters MonoTorr PS4 Phase II 3000 Series Gas Purifier, Rare Gases Series Purifier System
Model: PS4-MT3-R1 / PS4MT3R1
With Manual, Certificate of conformance and Power cord

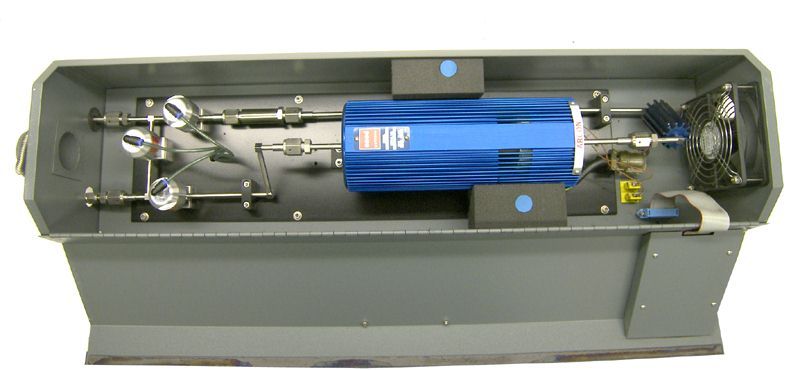

The purifier has an electropolished interior surface, minimal dead space, and is easy to install. The purifier is completely assembled, with 1/4" male and female ultra-high purity (UHP) face seal fittings for gas inlet and outlet. It includesinlet and outlet stainless steel diaphragm valves, 0.003 micron particle filter, and an on-board electronic control unit. All nitrogen and rare gas purifiers have a Life Status Sensor (LSS) as an impurity breakthrough indicator.
All impurities are chemically bonded to the purifier material. The purifier will not release the trapped impurities under vacuum, high pressure, room temperature or maximum design temperature, even when purifier nears its maximum capacity for impurities.
Specifications Rare Gas & Nitrogen
Maximum Flow Rate MT3: 50 SLPM (1.0 SLPM minimum)
MT15: 75 SLPM (1.5 SLPM minimum)
Nominal Flow MT3: 5 SLPM, MT15: 15 SLPM
Maximum allowable working pressure 10 bar (150 psig)
Operating temperature Nitrogen: 350 C, Rare Gas: 400 C
Outlet gas temperature 50 C
Installed power MT3: 300W Optional 120 VAC: MT15: 600W MT3: 330W Optional 220 VAC: MT15: 660W
Getter confinement 15 um in/out porous SS filter
Inlet connection 1/4" face seal female fitting
Outlet connection 1/4" face seal male fitting
Pneumatics connection 1/4" NPT female fitting
Valves Three, diaphragm type, air actuated
Pneumatics utilities Nitrogen or clean dry air at 80-100 psig, filtered to 10 um
Filter .003 um all-metal type
Control unit Discrete analog temperature controller with alarm and shut-down features
