Plumett mp 30 data recorder, cable laying, force speed
THE FOLLING FROM: WINCH SYSTEMS.
Utility Industry: Cable Pulling/Winching Data Recording:

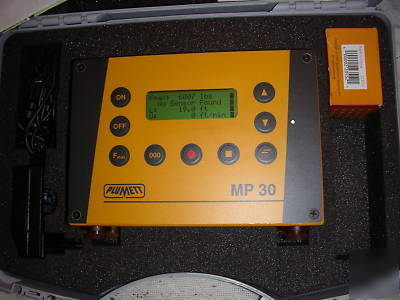

The Plumett MP 30 recorder measures and records the exerted pulling force, as well as cable laying speed and lengths.
* Besides the ON and OFF switches, all functions can be operated by 7 buttons:
* Modification of the maximum pulling force.
* Screen display functions (3 buttons).
* Visualization of data on a LCD screen.
* Small in dimensions, the unit fits into a protective carrying case after its use.
* Connection to a PC to print the cable-laying protocol.
* All recorded data can appear on a spreadsheet (Excel), thus allowing prints of graphic layouts if necessary.
* Adaptable to all Plumett winches.
* Various measuring scales if required.
* LCD retro lighting display.
* Anti-corrosion thermo-lacquered steel case.
* International or imperial system measuring units.
* RS 232 serial link (USB with USB-RS232 adaptor).
* 213 x 158 x 85 mm - 1.8 kg.
Winch Systems Ltd has UK Authorised Sales and Service Centre status for the entire Plumett range, which includes winches and equipment for cable floating, cable pushing and cable pulling. Contact us for advice, sales and service concerning utility industry and telecoms industry applications for the Plumett range of data cable, power cable and overhead line working equipment.
