New fluke 434 basic power quality analyzer * * msrp 4805

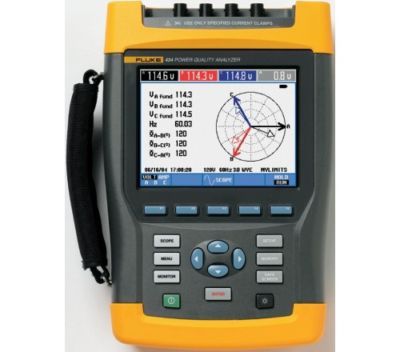

Fluke 434 Basic Power Quality Analyzer
* 4 current probes (i400s) (not included with 434/BASIC)
If needed we can Calibrate for an additional $149.99 a $299.99 service
Pinpoint power quality problems faster, safer and in greater detail
The Fluke 434 three-phase power quality analyzer help you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use handheld tools have many innovative features to give you the details to pinpoint problems faster and safer.
* Complete three-phase troubleshooting tool: measures virtually every power system parameter : voltage, current, frequency, power, power consumption (energy), unbalance and flicker, harmonics and inter-harmonics. Captures events like dips and swells, transients, interruptions and rapid voltage changes.
* AutoTrend: no time wasted setting up additional trend graphs while every measurement is automatically recorded. Analyzes trends using cursors and zoom function while recording continues in the background.
* System-Monitor: gives immediate insight into power system s quality. Checks conformity to limits specified in EN50160 or to own custom limits.
* Four channels: simultaneously measures voltage and current on all three phases and neutral.
* Automatic transient display: captures up to 40 dips, swells, interruptions or transients automatically.
* Meets the stringent 600 V CAT IV, 1000 V CAT III safety standard required for measurements at the service entrance.
* Rugged, handheld instrument operates for more than 7 hours on included rechargeable NiMH battery pack. Menu-driven interface simplifies operation.
* Extensive data analysis possibilities. Cursors and zoom can be used live while taking the measurements, or offline on stored measurement data. The stored measurements can also be transferred to a PC with FlukeView software (included with Fluke 434).
* Complete package includes everything to get started: 4 current clamps, 5 voltages test leads and clips, line adapter/battery charger and hard case.
* Complies with IEC 61000-4-30 measurement standards.
* 434's are always in stock!
AutoTrend - Quickly see the trend
AutoTrend automatically records all displayed parameters in the background Toggle between data and trend view and use cursors and zoom to analyze measurements without interrupting the recording.
Unique AutoTrend gives you fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or interval times, or having to manually start the process. You can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral. And you can analyze the trends using the cursors and zoom function even while background recording continues.
SystemMonitor - Check performance against EN50160 or your own custom specifications with ease
The System-Monitor overview screen gives instant insight into whether the voltage, harmonics, flicker, frequency and the number of dips and swells fall outside the set limits. A detailed list is given of all events falling outside the set limits.
With a single push of a button, the unique System-Monitor gives you an overview of power system performance, and checks the compliance of incoming power to EN50160 limits or to your own custom specifications. The overview is shown on a single screen, with color-coded bars clearly indicating which parameters fall outside the limits. A list of each event falling outside these limits is generated.
Every time an event or distortion on the voltage waveform is detected, the instrument triggers and automatically stores voltage and current waveforms on all three phases and neutral. The instrument can also trigger when a certain current value level is exceeded. Up to 100 dips, swells, interruptions and transients can be captured in this way. You can see voltage transients as high as 6 kV and as fast as 5 microseconds.
Extensive data analysis possibilities
The Fluke 430 series provides three ways to analyze the measurements. Cursors and zoom can be used live while taking the measurements, or offline on stored measurement data. The stored measurements can also be transferred to a PC with FlukeView. This software s "view mode allows cursors and zoom to be used on stored measurements as if actually working with the instrument. To perform custom analysis and to create reports, measurement data can be exported to common spreadsheet programs. The instrument can store up 10 measurements, where each measurement can contain up to 32 parameters recorded for more than a year, and up to 50 screens
Designed to help protect you and your equipment against electrical shock and fire, the Fluke 430 Series analyzers, accessories and charger are all certified to meet the stringent safety standards for use in 600 V CAT IV and 1000 V CAT III environments. They are the first tools of their kind to carry the CAT IV rating and can therefore be used at virtually all power connections and outlets in low-voltage power distribution systems
The full color display uses industry-standard color-coding (user selectable) to correlate measurements with actual wiring
Simple menu structure with logical function grouping gives fast access to key measurements
Scope view shows voltage and current waveforms for all three phases. You can toggle to a phasor diagram at any time
Phasor diagram shows voltage and current unbalance, and helps verify connections
Record dips and swells as short as one half-cycle with min/max/avg readings
Track harmonics up to the 50th, and measure and record THD in accordance with IEC61000-4-7 requirements
Measure and record power (W), VA, and VARs. The 434 adds the ability to record energy consumption
Inrush function captures starting current on motors and other devices to help determine trip levels
Measures voltage, current, dips, swells, interruptions, harmonics, inter-harmonics, flicker, power, energy, transients, frequency, unbalance, inrush, EN50160 overview
Logger function with multi-parameter logging
water-tight hard case with rollers
Report generation and logger analysis software Power Log
* Optional functionality can be added with upgrade kit
** Requires optional Accessory
* Optional functionality can be added with upgrade kit. For details see ordering information.
Add the 434 functionality to the 434 with the Fluke 434 UGK Upgrade Kit
* Advanced functions upgrade (Inter-harmonics, energy, transient display and inrush current, data memory extension)
Number: 4 voltage and current (3 phases + neutral)
Maximum voltage: 1000 Vrms (6 kV peak)
Maximum sampling speed: 200 kS/s on each channel simultaneously
Measurement range: 1 ... 1000 V
Measurement range: 1 ... 1400 V
Measurement range: 1.0 ... > 2.8
Measurement range: 0 ... 20 kA
Measurement range: 0 ... 5.5 kA
Measurement range: 42.50 ... 57.50 Hz
Measurement range: 0.0% 100% of Vnom
Accuracy: 0.2% of nominal voltage
Measurement range: 0 ... 20 kA ?
Measurement range: DC, 1..50; (Off, 1..49) measured according to IEC 61000-4-7
Measurement range: 0.0 1000 V
Accuracy: 0.05% of nominal voltage
Measurement range: 0.0 4000 mV x clamp scaling
Measurement range: Depends on clamp scaling and voltage
Accuracy: 5% n x 2% or reading, 10 counts
Measurement range: 0.0 100.0%
Accuracy: 2.5% V and A ( 5% Watt)
Measurement range: 0 3500 Hz
Measurement range: -360 ... +360
Measurement range: 1.0 20.00 MVA
Measurement range: 00.00 200.0 GVAh
Measurement range: 0.00 20.00
Minimum detect duration 5 s (200kS/s sampling)
Measurement range: 0.000 20.00 kA
Accuracy: 1% of meas 5 counts
Measurement range: 7.5 s ... 30 min
Accuracy: 20 ms (Fnom = 50 Hz)
Sampling: 5 readings/sec continuous sampling per channel
Memory: 1800 min, max and avg points for each reading
Recording time: Up to 450 days
Zoom: Up to 12x horizontal zoom
Screens & data: 50, shared memory divided between logging, screens and data sets
Value is measured over 1 cycle, commencing at a fundamental zero crossing, and refreshed each half-cycle
The advanced functions Interharmonics, Energy, Transients and Inrush are optional for the Fluke 434 and standard available on the Fluke 435.
EN61010-1 (2nd edition) pollution degree 2; 1000 V CAT III / 600 V CAT IV ANSI/ISA S82.01
Rechargeable NiMH pack (installed): >7 hours
Battery charging time: 4 hours typical
Vibration: 3 g according to MIL-PRF-28800F Class 2
Rugged, shock proof with integrated protective holster, IP51 (drip and dust proof)
