Dwyer series 1800 pressure switch model # 1823-10

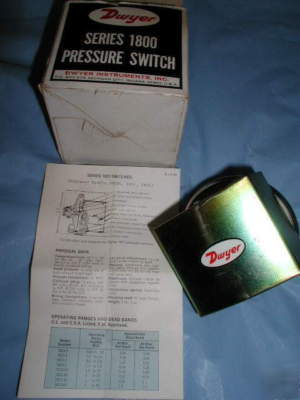

Dwyer Series 1800 Pressure Switch #1823-10
* Temperature Limits: 32 degrees F. (-30 degrees for dry air, -65 degrees with MIL option) to 110 degrees F. (130 degrees with reduced electrical rating).
* Rated Pressure: 10 psig one or both sides of diaphragm.
* Pressure Connections: 1/8 NPT
* Electrical Rating: 15 amps, 120-480 volts, 60 Hz. A.C. Resistive 1/8 H.P. @ 125 volts, H.P. @ 250 volts, 60 Hz. A.C.
* Wiring Connections: 3 screw type, common, normally open and normally closed
* Set Point Adjustment: Screw type inside mounting spud.
* Housing: Aluminum die casting. Steel fittings zinc plated, dichromate dipped for 200 hour salt spray test.
* Diaphragm: Silicone rubber on Dacron with aluminum support plate.
* Calibration spring: Stainless steel.
* Mounting Spud: pipe thread.
Operating Range inches, W.C.
