5 gallon sigma blade mixer - c/s-jacketed - 10 hp #5260

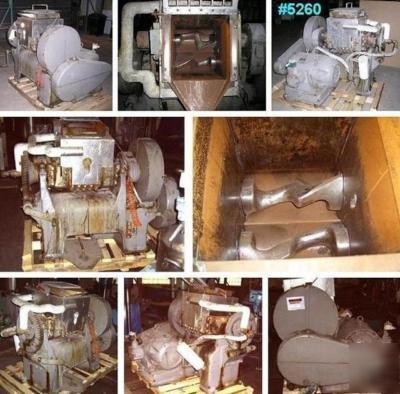

5 GALLON SIGMA BLADE MIXER - C/S - JACKETED - 10 HP
1 - Used approx. 10 gallon total/5 gallon working capacity Double Arm Mixer believed to be manufactured by Baker Perkins. Carbon steel construction. Tangential sigma blades. Jacketed for heating. Hand wheel tilt discharge with apron and top hinged cover (non-vacuum). On base with 10 HP motor (3/60/208-416/870). Bowl is approx. 13 1/4 in. x 11 3/4 in. x 20 in. deep. Overall dimensions approx. 42 in. x 64 in. x 60 in. high. Weight estimate - 4000 lbs. F.O.B. CLEVELAND OH
