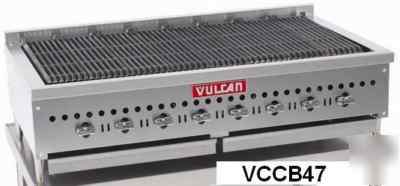

New vulcan hart VCCB47 ~ 47" char broiler radiant ~
47" COUNTER TOP CHAR BROILER - RADIANT MANUFACTURED BY VULCAN HART / MODEL VCCB47 / SS FINISH / NATURAL GAS BRAND NEW - - NEVER BEEN USED
Low Profile Charbroiler - VCCB Series
* 14,500 BTU/hr aluminized steel bar burners in each 6" section
* Standing pilot ignition system with infinite control gas valve burner controls
* Deflector panels below each burner focus heat into the cooking zone for higher efficiency - this design also creates a "cool zone" in the full width grease drawer
* 13" working height - 14 3/4" overall height on 4" adjustable legs
* Heavy duty cast iron reversible chair-radiants and 5 1/4" wide "Flame Arrestor" broiling grates are standard
* Stainless steel sides, control panel, top rim, backsplash and full width grease trough
* 3/4" gas connection with pressure regulator
* 1 year parts and labor standard
