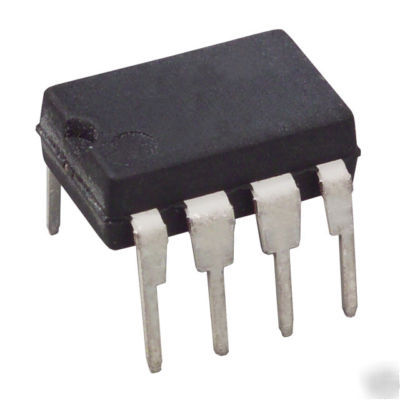

Ics chips: 1PC LT1360CN8 50MHZ 800V/μs slew rate op amp
- C-Load Op Amp Drives All Capacitive Loads
- 1mV Maximum Input Offset Voltage
- 1 A Maximum Input Bias Current
- 250nA Maximum Input Offset Current
- 13V Minimum Output Swing into 500
- 3.2V Minimum Output Swing into 150
- 4.5V/mV Minimum DC Gain, RL=1k
- 60ns Settling Time to 0.1%, 10V Step
- 0.2% Differential Gain, AV=2, RL=150
- 0.3 Differential Phase, AV=2, RL=150
- Specified at 2.5V, 5V, and 15V
