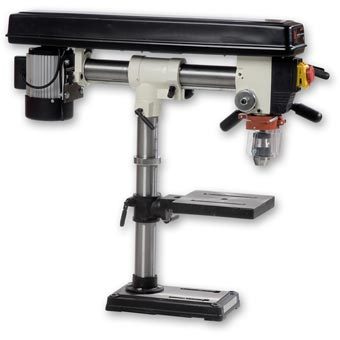

Axminster AWBRD550 bench mounted pillar drill - 240V
Axminster AWBRD550 Bench Mounted Drill - 240V
Suitable for the home workshop
Variable drilling width between 120mm and 430mm
Locking rack and pinion system
Speed choices (5) 460-2,890rpm
Axminster AWBRD550 Bench Radial Drill
This is a truly universal drilling machine that will be an asset to any home workshop. Perhaps the most outstanding feature of the machine is the variable drilling width capacity of between 120mm and 430mm, measured from the centre line of the chuck to the front face of the column. This gives a maximum drilling width well above normal drill press capacity which, coupled with the ability to vary the drilling angle, gives the machine a high degree of versatility. The horizontal movement of the head is controlled by a rack and pinion system which can be firmly locked in position. Tilting is easily achieved by undoing a locking knob at the top of the column, setting the required angle against a scale and re-locking the knob. There is a positive locating pin which runs in a keyway on the horizontal bar to ensure that the head returns exactly to the vertical. The 550W induction motor drives the drilling head, equipped with a 16mm keyless chuck through a V belt and a choice of five pulleys giving a speed range of (5) 460-2,890rpm. One word of warning - the chuck is located in the drive quill with the conventional Morse taper which requires axial loading to keep it securely in place; if the head is used in the horizontal position in conjunction with a sanding drum or polishing mop there is a risk of the chuck coming loose. The machine comes complete with 16mm keyless drill chuck and chuck guard. Column diameter is 60mm and it has a solid cast iron handle.
Please note that this machine is not suitable for use with a morticing attachment.
