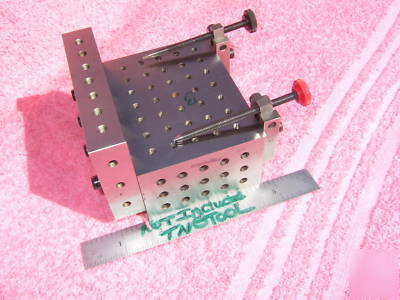

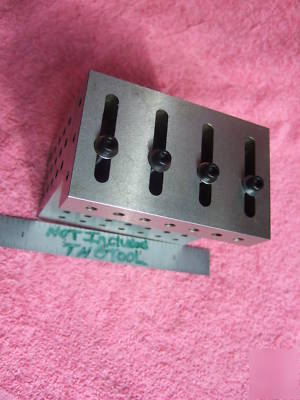

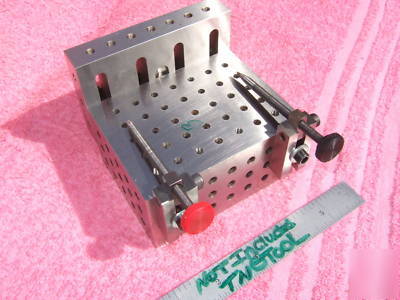

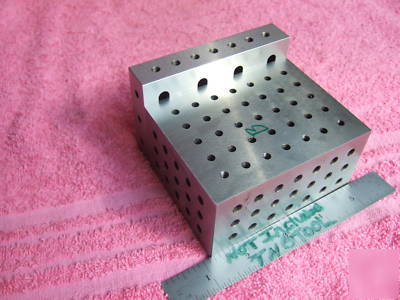

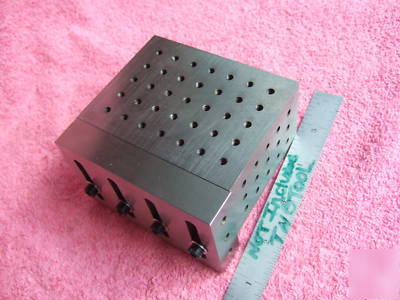

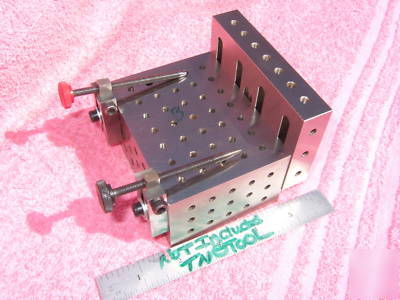

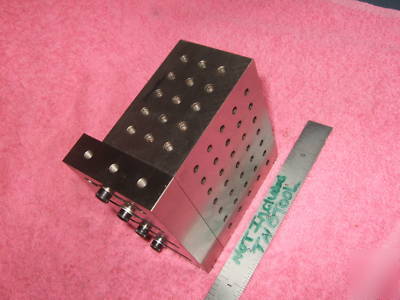

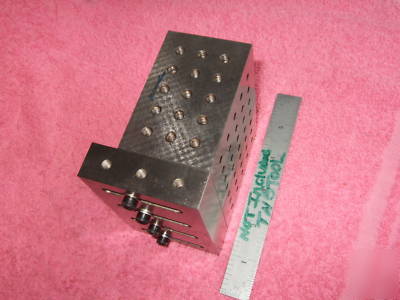

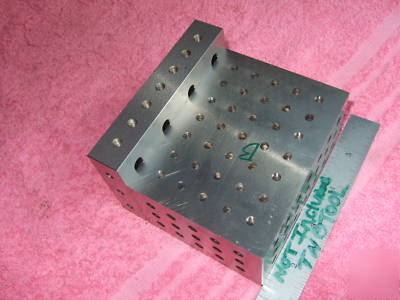

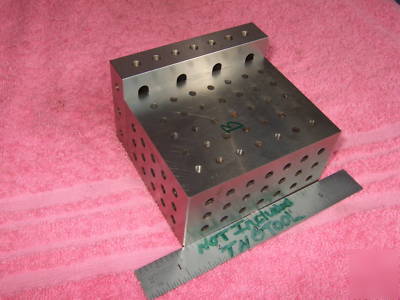

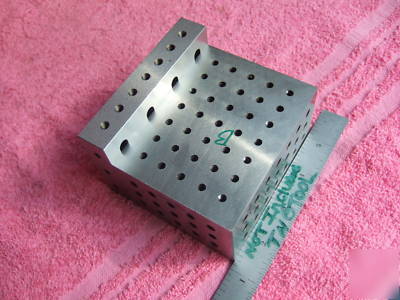

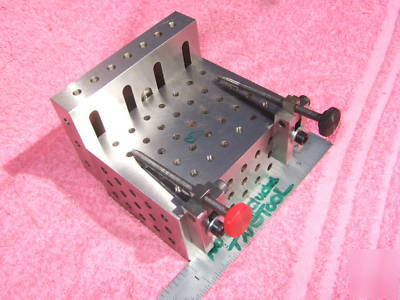

ANGLE PLATE OR EDM ELECTRODE BLADE HOLDER (1) LARGER SIZED. SOMETIMES CALLED A "THIRD DIMENSION BLOCK". THIS ONE HAS THE ADJUSTABLE BACK RAIL. IT WILL BOLT EITHER ON FRONT OR REAR. VERY BEEFY TOOL TO BE SURE! MADE FROM A-2 AIR HARD TOOL STEEL AND VERY NICELY PRECISION GROUND. ANGLE BLOCK OR BASE IS TAPPED #10 X 32 (107) TIMES MANY HOLES THROUGH THE BLOCK. BLOCK COMES WITH 1 RAIL AS SHOWN . BLOCK HAS BEEN RECENTLY GROUND AS SHOWN. SMALL PRECISION GROUND CHAMFERS AS SHOWN. VERY NICELY MADE FOR SURE! HAS NO DAMAGE BUT MAYBE MINOR MARKS OR SCRATCHES FROM USE AS SHOWN. BACK RAIL IS SAME WIDTH AS BASE BLOCK. SLOTTED 4 TIMES FOR #10 SCREWS AS SHOWN AND TAPPED (13) #10 X 32 AS SHOWN. SUPER NICE BLOCK FOR SURE!~ SOME OF HIS OTHER BLOCKS AND GRIND VISE ANDPARALLEL SETS ARE ON NOW ALSO! MADE OF HARDENED AND PRECISION GROUND TOOL STEEL BY AMERICAN TOOLMAKER NOW RETIRED FROM THE MOORE JIG-GRINDER HE OPERATED.
ANGLE PLATE OR EDM BLOCK RECENTLY GROUND USING HERMANN SCHMIDT SQUARING BLOCK FOR ACCURACY. BASE MEASURES 3" ( 3.001") WIDE X 1-15/16" (1.936") TALL x 4"- (3.962") LONG. VISE OR CLAMPING AREA MEASURES VARIABLE HEIGHT RAIL X 3.00" FOR BLADES OR ELECTRODES OR AS NEEDED. EDM YOUR OWN NAME ON NOW! ANGLE BLOCK HAS (107 TOTAL) TAPPED HOLES #10X32. RAIL IS SLOTTED 4 TIMES FOR #10 SCREWS AND MEASURES .748" THICK X 2.504" TALL AND IS 3.998" LONG. TOOLMAKER SAID THIS TOOL WAS MADE FROM "A-2" AIR HARD TOOL STEEL THEN PRECISION GROUND AFTER HEAT-TREATING. VERY NICE EDM BLOCK OR GRIND CUBE JUST THE RIGHT SIZE FOR YOUR HARIG SURFACE GRINDER OR EDM WORK! STORED ALL ITS LIFE IN A GERSTNER CHEST EVEN HERE!
