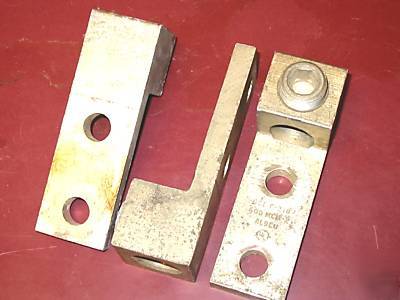

3 C310 mechanical lugs 600MCM-2 al/cu ul LA600-2 penn
C310 MECHANICAL LUGS 600MCM - 2 AL9CU UL IDENTICAL TO LA600-2 PENN UNION
1 CONDUCTOR(S); CONDUCTOR SIZE 2 AWG TO 600 MCM;
CONDUCTOR MATERIAL ALUMINUM/COPPER; STRAIGHT PAD; ELECTROLYTIC TIN PLATED ALUMINUM ALLOY;
2 PAD HOLE(S); PAD SIZE 3-5/16 INCH LONG X 1-1/2 INCH WIDE X 7/16 INCH THICK;
9/16 INCH STUD SIZE; OVERALL LENGTH 4-11/16 INCH;
APPROVAL UL, CSA; LA MODEL; SOLDERLESS
