1987 matsuura #ra-1 cnc vertical machining center
1987!! MATSUURA #RA-1 CNC VERTICAL MACHINING CENTER
Made in Japan by Matsuura Machinery Corp.This is a CNC Vertical Machining Center in working condition.Model #: RA-1Serial #: 870205870Type #: MC-510VS-PC2SDate of Manufacture: 02/1987
Number of Usable Pallets on Machine: 2
Overall Pallet Surface Area: 23.6" x 14.9"
Maximum Load Weight: 550 lbs.
Pallet Change Time: 9 seconds
Dimension of Locator Groove: 11/16" x 1"
Tapped Holes (size x number): 5/8"-11 UNC x 42
Type of Pallet Change: Shuttle Type
Pallet Clamping Power: 1,600 kgf
Pallet Center to Column Guideway: 16.53"Travels:
Spindle Speeds Range: 60 - 6,000 rpm
Spindle Drive System: Belt Drive
Pallet Top to Spindle End: 5.9" - 24"
Spindle Center to Column Guideway: 16.53"
Motor: 5.5 kW (30 min.) / 3.7 kW (continuous)
Maximum Spindle Torque: 3.2 kg-mMovement Rates:
Rapid Traverse (X & Y): 944 ipm
Rapid Traverse (Z): 590 ipm
Cutting Feedrate (X/Y/Z): 0.01 - 393.7 ipm
Continuous Manual Feedrate: 0 - 118 ipmAutomatic Tool Changer:
Number of Tool Positions: 20
Maximum Tool Length: 11.8"
Maximum Tool Weight: 13.2 lbs.
Maximum Tool Diameter (with adjacent tool): 3.15"
Maximum Tool Diameter (with pockets on both sides empty): 5.9"
Tool Change Time (Tool-to-Tool): 1.8 seconds
Tool Change Time (Chip-to-Chip): 6.5 seconds
Tool Selection System: Memory random selection, bi-directional magazine rotationMotors:
Feed Motors (X/Y): 0.85 kW
Lubrication Pump Motor: 0.01 kWGeneral:
Coolant Tank Capacity: 75 liters
Lubrication Oil Tank Capacity: 2.2 liters
Overall Dimensions of Pallet Changer: 48" x 30" x 41" tall

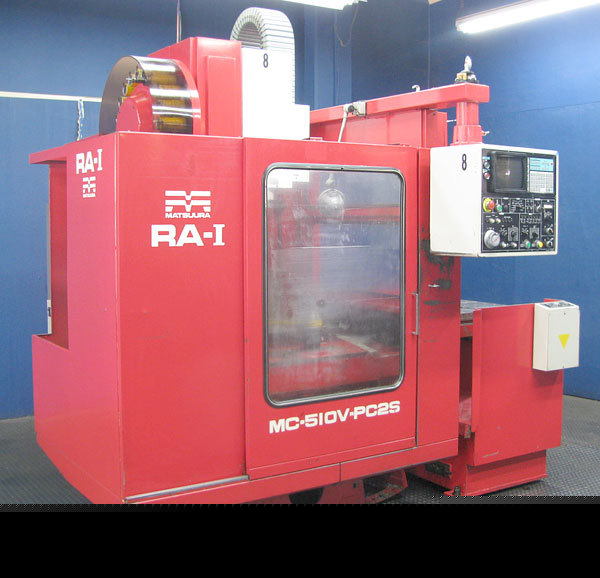

Overall Dimensions of Machining Center: 90" x 105" x 110" tall (as shown in pictures)Comes as shown in pictures.
