Digital storage oscilloscope owon PDS7102T, pds PDS7102

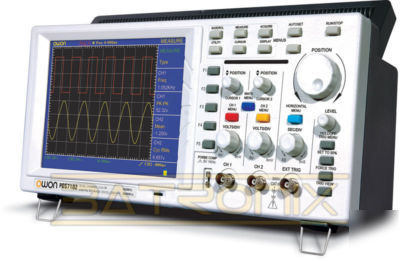

PDS7102T digital storage oscilloscope
The new digital storage oscilloscope PDS7102T offers reliably and high quality measurement technology for a really good price.
The colorful TFT LCD panel with the resolution of 640 x 480 makes the wave easy to read, especially when a big data or many wave covered reciprocally.
The PDS7102T offers 100 MHz bandwidth and a sample rate of 500 MS/s in dual Channel.
Delivery including 2 probes, USB cable, pc software, power adapter and manual.
* Oscilloscope details PDS7102T
* Real-time sample rate500 MS/s real time
* Display7.8" TFT LCD with 260000 colors
* Max. Input voltage400 V (peak)
* Real-time sample rate1 S/s to 500 MS/s real time
* Time base 5 ns/Div. to 5 s/Div.
* Memory6000 points on each channel
* Analog digital converter (A/D)With the resolution of 8 bits, make sampling on both channels synchronously.
* Sensitivity range (V/div)5 mV/Div to 5 V/Div.
* Displacement range 10 Div. (5 mV - 5 V)
* TriggerChannel 1, 2 and external Trigger
* Trigger displacementPre-Trigger: 655 Divisions
* Signal system and line/field frequency (Video triggering mode)Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency.
* Cursor measurementVoltage difference ( V) and time difference ( T) between cursors
* Auto measurementPeak-to-peak value, average value, root mean square value, frequency and cycle.
(13.78 x 6.18 x 4.72 inch)
Nearly all products in stock
Via DHL Express 24-48 hours Europe, 2-3 business days USA
