Broadband fabry perot wavelength locker e-tek / jdsu

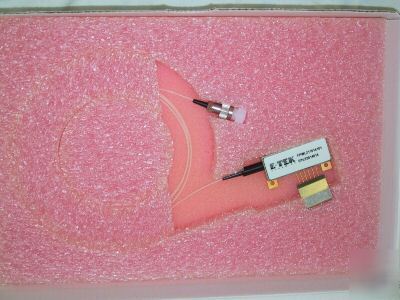

E-TEK / JDSU Fabry-Perot Wavelength Locker
Integrated Module on 100GHz ITU Grid
(Also available on offset 100GHz grid.)
Part number FPWL211014100-1. FCPC connector. The Broadband (Fabry-Perot) Wavelength Locker is a thermally stable, air-gapped etalon-based device. It can be used to stabilize laser sources for high-density WDM applications and tunable lasers. Available with offsets of 50 GHz, in order to support interleaved architectures. All FSR and ITU offset variations come in the same industry standard package.
The Broadband Wavelength Locker has a wide capture range and excellent wavelength accuracy. The temperature sensor, included with every locker, can be used to calibrate out thermal effects when even higher wavelength accuracy is required or when using a very narrow FSR locker.
* Extremely low temperature dependence
* Periodic locking covers all channels (one part number for any channel to reduce inventory)
* Temperature sensor included for better locking accuracy if necessary
* Operation over C and L bands Applications
* Precise laser locking for DWDM and ultra DWDM transmitter
* Laser stabilization for tunable laser module
* DWDM channel frequency and optical power monitoring Compliance
Telcordia 1221 Product Datasheet: http://products.jdsu.com/assets/public/pdf/wvl_ds_cc_ae_032106.pdf

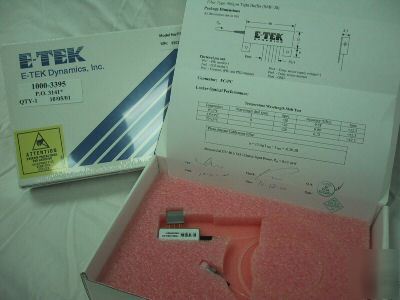

This item is in good physical condition and perfect working order. Also available new in sealed packages.
