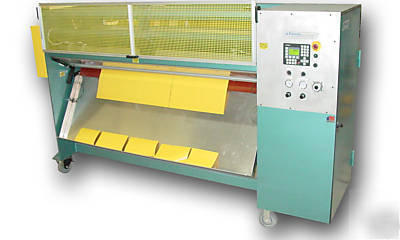

Sheeter - ez sheeter - slitting, perforating, sheeting
Your LOW COST SOLUTION to cut rolls into Sheets of any length and width in MINUTES!!!!
* Simple, Safe, low maintenance
* Gain control of your Sheeting production
* Quick-change cross cut blades
* Sturdy welded construction. Small footprint.
* Easy operator controls. Automatic operation.
* 38" to 200" standard width machine available.
* Drop-in unwind shafts and simple tension controls.
* Score, Shear, or Perf cross cutting.
* Razor, Score, Shear, or Perf slitting during feed (opt).
* Quick-change razor cutter bar, shear / score blade holders (opt).
* Variable speed servo drive, up to (24) 24" cuts per minute.
* Standard accuracy of +/- 1/32" over 36", (optical reg avail.).
* Casters for mobility, Tension Controls, Edge Guiding
* Many Unwind / in-line feed options
* Perforating Cross Cut and Rewinding options
1. Load the master roll onto the unwind shaft and place the shaft into the machine.
2. Wrap the drag strap around the roll and add appropriate weight for desired tension.
3. Set the blade positions to the desired slitting widths(opt.).
4. Thread the material through the machine past the cutters and into the nip rollers.
6. Activate the slitting blades to penetrate the web (opt.).
7. Jog material, reset counter, make initial clean cut.
8. Enter the Cut Length and Number of peices desired.
9. Press Start and automatic operation begins until count is reached.
SCORE CROSS CUT SHEAR CROSS CUT
