Rotary water well drilling rig

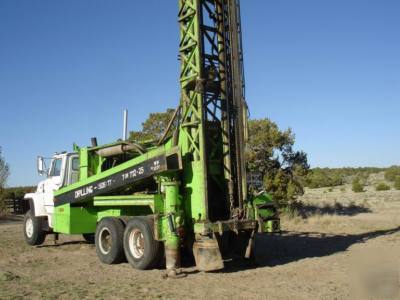

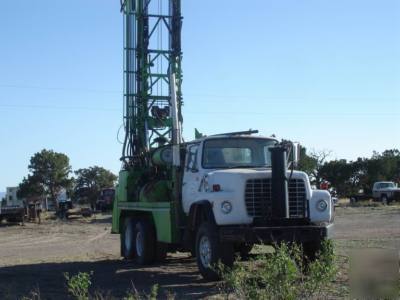

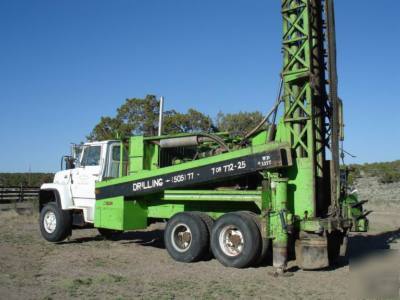

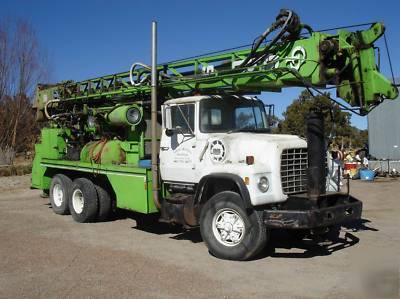

1978 Ford L 8000 Carrier with a 3208 Caterpillar engine. 5 x 4 Transmission with 44,000 lb. Eaton Rear Ends. Jack shaft and torque arms are new. All oils in drive trane are new. Tires are in good condition. Fronts are 425 x 22.5 and Rears are 1200 x 20.

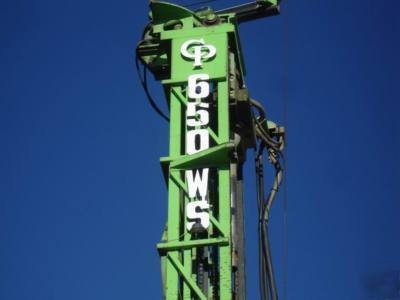

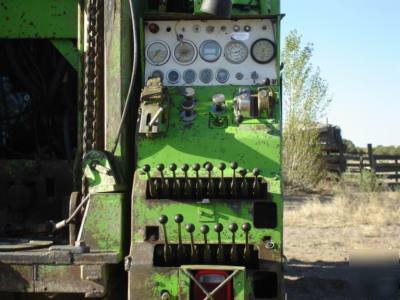

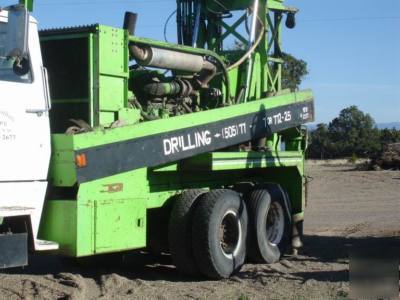

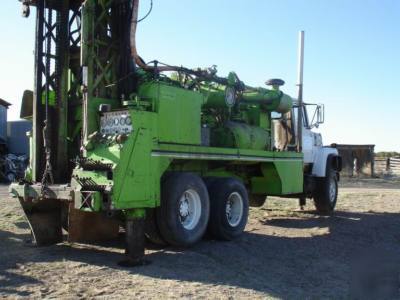

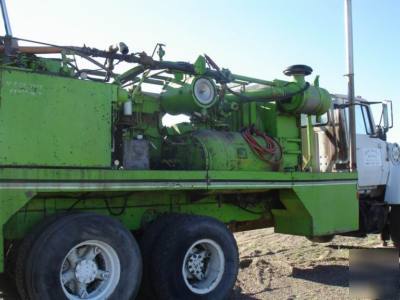

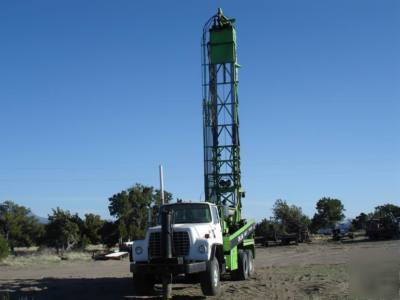

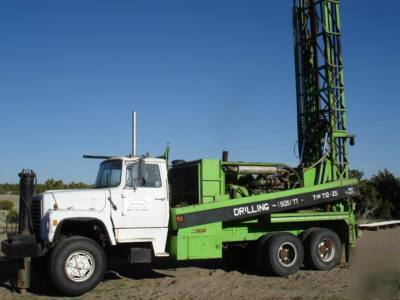

Rig is a 1978 CP 650 WS. 35K Pulldown and Holdback . 3406 Caterpillar deck engine. Deck engine runs strong,does not use any oil and does not have any leaks. It also has a new starter and alternator. Valves were also set recently. Compressor is a GHH 825/300 and has roughly 2,800 hours on it since it was rebuilt. We have also changed the oil in the compressor, replaced the separator and rebuilt the pressure regulator recently. Hydraulic system is tight with new oil and very few leaks. Many new hoses through out. In 2006 one of the secondary pumps was replaced with a new pump and in 2007 the primary pump was replaced with a new upgraded pump with higher flow capacity. Control valve bodies were replaced with new ones and roughly 18,000 dollars was invested in hydraulic components in 2007. Hoist rams were replaced with rams for 50K specs. In 2008 one of the two was rebuilt with a new rod and seals. Pulldown and holdback chains are 140's if modified to 160 chains and sprockets rig could easily be a 2000' rig. Gear box between deck engine and pumps has been resealed recently,while opened up bearings and races were inspected and everything inside looks great! Drive shaft between deck engine and gear box has new U-joints and slip joint is in excelent condition. Rig also has a 2 Cylinder Bean Injection Pump rated at 12 gpm as well as an electric hammer oiling system which works flawlessly. In 2007 the top head drive was rebuilt, putting in a new pinion, bearings and seals. Rig also has new wench cable and breakout wrench cable. 300' of 4 1/2'' x 20' drill pipe will be included, 3 1/2'' tool joint. Along with the pipe a 7'' collar and a 8 3/4'' tri cone button bit will be included. A five rod courosel will be included but as the pictures show it is not mounted on the rig. We have drilled with this rig to 1,060' with no problems. All maintenance was done regularly. Everything is in good working order. Ready to drill. If you have any questions please feel free to call Walter at 1-(***)-350-8948 or 1-(***)-772-2677. Price is negotiable so please if you have a respectable offer give me a call. Local pickup is prefered but arrangements can be made,again feel free to call.
