Westinghouse circuit breaker cabinet 2000 a nice

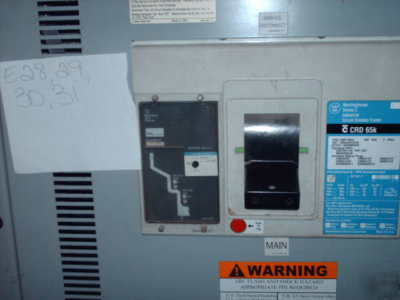

The information on the blue tag in the second picture says: Series C. Industrial circuit breaker frame. 2000 amp max. 600VAC. 3 pole. CAT #: CRD320T32W. Style: 1495085G35. Equipped with digitrip 310 trip unit RES2000LSI. Available rating plus: 20RES20T, 20RES16T, 20RES14T, 20RES125T, 20RES12T, 20RES10T, A20RES20T1, A20RES20T2. Interrupting capacity-RMS Symmetrical Amps. 240~ 125k Amps, 480~ 65k Amps. 600V~ 50k Amps (~ = 50/60Hz). For 100% application-use rear connectors B2016RDL and minimum enclosure size of 21.5 h x 18 w x 13 d inches.

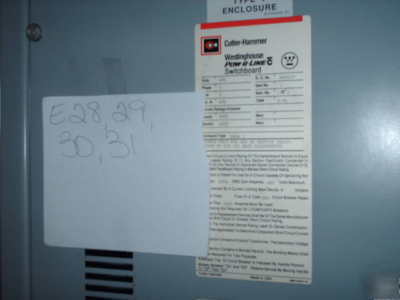

The tag in the third picture says: Westinghouse POW-R-Line C Switchboard. 480V, 3ph, 3 wire. G.O. No. 066537. Current ratings: 2000 ampere supply and section. Enclosure type: NEMA 1. Suitable for use as service equipment. Max of 6 main disconnects.

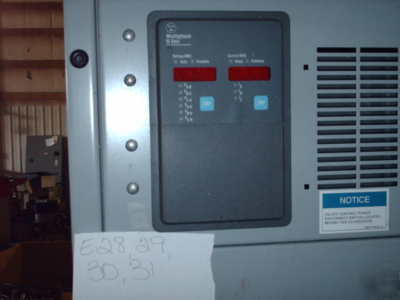

The tag in the last photoe says: Westinghouse IQ Data. Reads: Voltage RMS (volts/kilovolts), Steps: V A-B, V B-C, V C-A, V A-N, V B-N, V C-N. Current RMS (Amps/Kiloamps). Steps: I A, I B, I C.

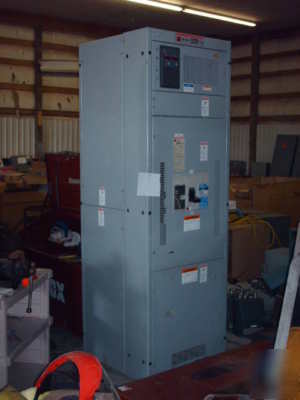

The size of the entire cabinet is 90" h x 30" w x 30" d.
