#vf-5/40 haas cnc vertical machining center #25719

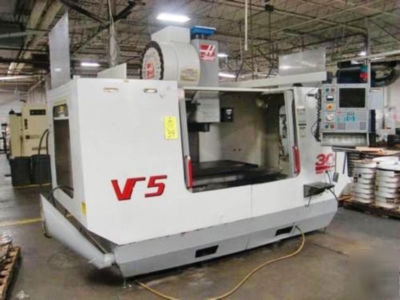

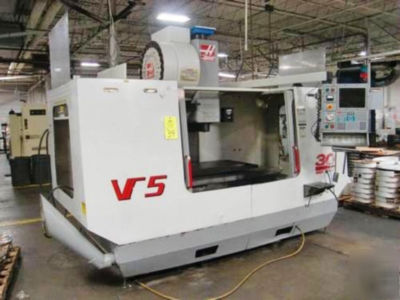

#VF-5/40 HAAS CNC VERTICAL MACHINING CENTER
New 2000, Serial No 23090, Model VF-5/40
Haas CNC Control (8MB Memory, 4th Axis Ready, Visual
Quick Code Programming, User-Definable Macros,
Coordinate Rotation & Scaling, High-Speed Machining,
Remote Jog, Floppy Disk Drive, Spindle Orientation)
24-Position Side-Mounted Automatic Tool Changer
Rigid Tapping - Brushless Servos - VOP Package
Auger-Type Chip Conveyor - Programmable Coolant
Table Dimensions (Overall), W x L....... 23" x 52"
Table Load Capacity..................... 4000 LBS
Table Longitudinal Travel (X-Axis)...... 50"
Saddle Cross Travel (Y-Axis)............ 26"
Quill Vertical Travel (Z-Axis).......... 25"
Spindle Nose to Table, Maximum.......... 32"
Spindle Nose to Table, Minimum.......... 7"
Spindle Taper........................... #40
Spindle Speeds, Range................... 0 to 10000 RPM
Cutting Feedrate, Maximum............... 500 IPM
Rapid Traverse Rates, X, Y, & Z-Axis'... 710 IPM
Tool Diameter, Maximum.................. 3.5"
Tool Weight, Maximum.................... 12 LBS
Spindle Motor, Horsepower Rating........ 40/30 HP
Overall Dimenstion, L x W............... 11'5" x 9'6"
Overall Height.......................... 9'10"
Weight, Approximately................... 14600 LBS
NOTE: This machine is equipped with $25,000.00 worth
MANUALS AVAILABLE UPON REQUEST.
PRICE: F.O.B. OUR WAREHOUSE............. $44,500.00
