Valleylab digital electrosurgical unit - surgistat ii

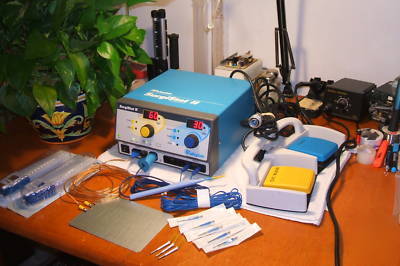

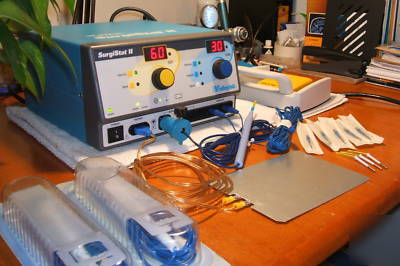

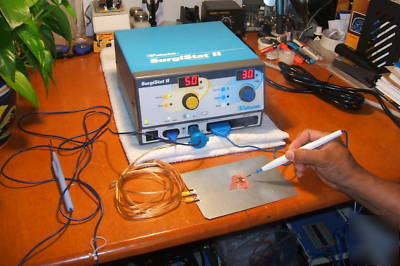

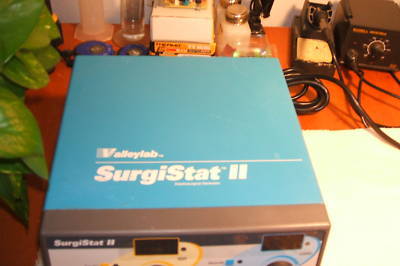

VALLEYLAB DIGITAL ELECTROSURGICAL UNIT - SURGISTAT II :
MODEL : SURG II-20 SERIAL # : VL2405022

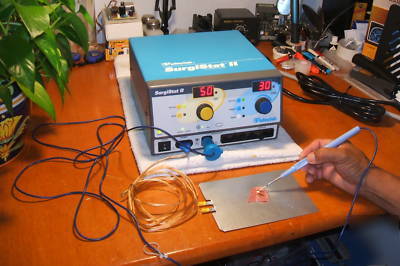

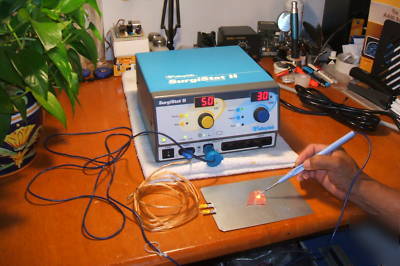

The Valleylab Digital Electrosurgical Unit - Surgistat II is designed for surgery clinic and doctor's office application. It provides monopolar cutting, coagulation and Bipolar capability with 120 Watts maximum output in Pure Cut Setting, 90 Watts Max. in Blend Setting, 80 Watts Max. in Desiccate Coag setting, 40 Watts Max. in Fulgurate Coag Setting and 30 Watts Max. In Bipolar output setting. This unit has been tested, calibrated, electrically safety tested, and meets manufacturer's specification during the time of calibration. This unit is equipped with return electrode monitor (REM) that automatically shutsdown when failure or abnormality of the unit occur.

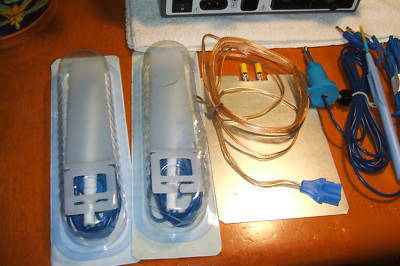

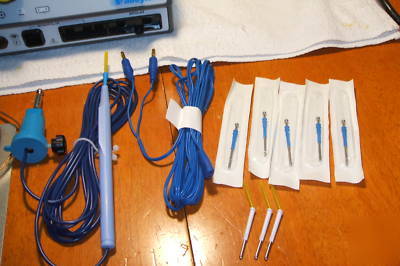

-1 Used Valleylab E0502 Foot Controlled Pencil Adapter
-1 Used Working Electrosurgical Footswitch (Cut/Blend, Coag Footswitch) Looks New
-3 Hyfrecator Electrolase Dermal Electrode Sharp Tip
Rated Load : 500 Ohms Rated Load : 200 Ohms
Setting : Pure Cut : Blend Desiccate / Fulgurate Setting : Output
90 : 89.0 : 90.0 - - 20 : 22.0
80 : 80.0 : 78.0 78.0 - 15 : 16.0
70 : 70.0 : 70.0 68.0 - 10 : 10.0
60 : 60.0 : 60.0 57.1 - 5 : 6.0
ELECTRICAL SAFETY TEST : Specification : Less than or Equal to 300 MicroAmp.
Leakage current (Chassis) 164.4 microamp. 167.1 microamp.
Leakage current (Earth) 164.4 microamp. 167.1 microamp.
Chassis Resistance : 0.074 Ohms

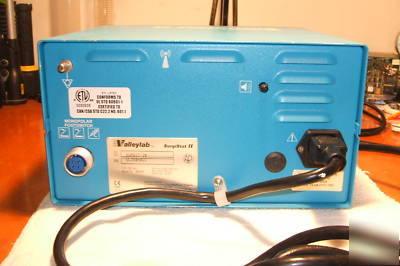

110-120 VAC , 50/60 Hz., 360VA, with Selectable Voltage Rating to 220 VAC
