> Professional universal eprom programmer conitec galep-4

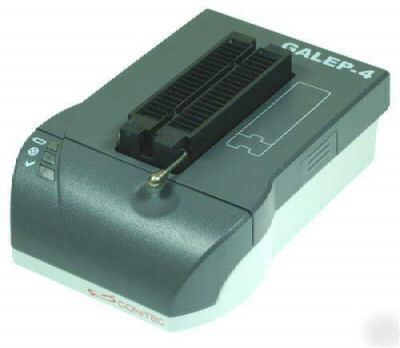

Professional universal eprom programmer conitec galep-4
By using a highly integrated FPGA, GALEP's internal logic is made freely programmable and is automatically optimized for the selected component.
* Battery powered operationThe Galep-4 can be powered from the power adapter or from six standard AAA batteries. The batteries are optional and not included in the Galep-4 package.OK
* Security featuresPrior to each function, the GALEP 4 checks the electric selected device's electric consumption, as well as the correct positioning of the selected component. This reduces the risk of accidentally harming the component or the programmer to a minimum.OK
* Actually supported chips>10000
* Complete chip support listGalep-4 chip list
Screenshot Galep-4 Software...The Galep-4 software features a comprehensive set of basic functions such as read, program, compare and delete, along with easy-to-use custom configuration options for any special functions required by the selected component.
The editor allows a multitude of functions for editing component contents which can be saved and loaded in binary, intel-hex, motorola-s or jedec file format.
* Socket40 Pin "High Quality" lever socket from Aries
* Low voltage support down to 1,3V
* Dimensions8 x 11.5 x 3.3 cm
* Weight without accessories / packaging171 gram (0.38 lb)
* Weight with accessories / packaging952 gram (2.10 lbs)
* File formats Binary, Intel Hex, Motorola S-Records, TI-Tagged Hex and Jedec
* File format auto detection -
* OffsetData and chip offsets
* SplittingComplete 16 and 32 Bit splitting functions
* Serial number generatorVery comfortable serial number generator with support for external serial number files.
* Checksum calculation Checksum
* Hex-EditorSimple with some editing functions
* Software remote controlThe Galep software can be remote controlled by other software with command line parameters and script files
* Software updates~2 weekly, free via download
* Supported operation systemsWindows 98SE, ME, 2000, XP, 2003, Vista
The delivery includes the programmer, parallel port cable, power adapter, software and manual on cd.
Nearly all products in stock
Via DHL Express 24-48 hours Europe, 2-3 business days USA
