> Mori seiki ZL15S with dual turrets and sub spindle

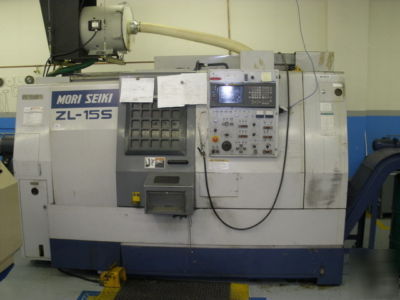

Mori seiki ZL15S with dual turrets and sub spindle
1-USED MORI SEIKI ZL15S CNC LATHE WITH UPPER AND
Swing Over Cross Slide 370 MM 914.57"),
Max Turning Diameter 230 MM (9.06"),
Max Turning Length 100 MM (3.94"0,
Travels X= Turret #1 135 MM (5.31"),
Spindle #1: Spindle Speed Range 50 - 5000 RPM,
Type Of Spindle Nose Jis A2-5,
Through Hole Diameter 52 MM (2.05"),
Spindle #2: Spindle Speed Range 60 - 5000 RPM,
Type Of Spindle Nose Straight,
Through Hole Diameter 35 MM (1.38"),
Motors Spindle #1 = 7.5/5.5 Kw. (10/7.5 HP),
Spindle #2 5.5/3.7 Kw., (7.5/5.0 HP).
Approx Weight 5500 Kg. (12,100#).
