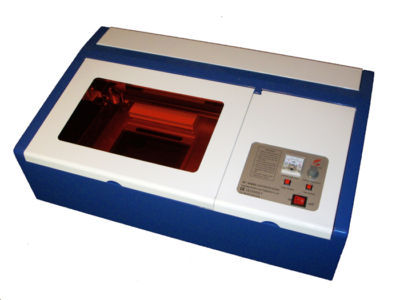

New brand 40 watt CO2 laser engraving machine
If you have any questions, please click here to send us an email
http://i672.photobucket.com/albums/vv83/scubasquirrel/Laser%20Engraver/1.jpg
http://i672.photobucket.com/albums/vv83/scubasquirrel/Laser%20Engraver/2.jpg
http://i672.photobucket.com/albums/vv83/scubasquirrel/Laser%20Engraver/3.jpg
http://i672.photobucket.com/albums/vv83/scubasquirrel/Laser%20Engraver/4.jpg
If you want professional and reliable service, then look no further. Our items
8. Quality Standard: If a product does not meet our quality standards, we simply will not sell it. We also keep pressure on manufacurers to maintain a high level of product quality.
* 1. FDA Compliant, CE Certified, ISO9001 Quality Certified
* 2. Brand New with Software
* 3. Extremely precise Stepping Motor
* 4. Reinforced and thickened machine body makes the machine more durable and increases its life time.
* 5. A built-in heat dispersion fan reduces the temperature of electrical components
* 6. The microchip and advanced motherboard which control the speed & accuracy are imported from Japan
* 7. German made bearings and stepping belts increase the accuracy and have also increased the component life span by two to three times that of the original engraver.
* 8. Built in safety switch prevents laser use while the loading lid is open
* 9. Multiple graphic formats are supported such as: PLT, DXF, BMP, JPG, GIF, PGN, and TIF
* 10. Engrave almost anything on almost any surface
* 12. Enhanced user manual. Many of our competitors offer a few confusing pages that has been roughly tranlated from Chinese. We have developed an extended user manual that takes you through the setup and first use, step by step, while offering advice and useful tips along the way.
* Surfaces: Flat (No rotary function available)
* Required Computer Connection: Integrated Parallel Port (25 pin, ECP mode)
* Software Computer Compatability: Windows 2000/XP (XP PRO run in compatiblity mode
* ISO9001 Quality Certification: Yes
* Tube Trigger Voltage: 20 kV
* Tube Operating Voltage: 15 kV
* Laser Tube Life Expectancy (hours): 1000-1300
* Engraving Area: 12" x 8" (30 x 20cm)
* Maximum Engravable Size: 10.25" wide x 8.75" long x 2.85" high
* Engraving Speed: 0 - 180 mm/s (0 - 7 in./s)
* Cutting Speed: 0 - 18 mm/s (0 - 0.7 in./s)
* Minimum Character Size: 1 x 1mm (0.04 x 0.04 in.)
* Resolution Ratio: 0.026mm / 0.001 in. (1000 dpi)
* Motor Type: Stepper Motor
* Included Software: NewlyDraw 12
* Graphic Formats Supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF (CorelDraw & CAD)
* Operating Temperature: 32 - 113 deg F (0 - 45 deg C)
* Coolant Method: Water (Pump included)
* Product Dimensions: 31.4" x 19.6" x 9.8" (800 x 500 x 250 mm)
* Product Weight: 30 kg / 67 lb
* Recommended Accessories: Extra or Spare Laser Tubes (20W, 40W, 60W, 80W, 100W, & 130W available), Focus Lens, Reflecting Mirrors.
* Parallel Connection Cable(1)
* 110/220V Power Converter(1)
* 220 V rated Power strip(1)
* Enhanced Owner's (1 - English)
* The products we sell are manufactured under rigorous guidelines outlined by the ISO 9001: 2000 Standards. Your purchase is backed with a 1-year limited warranty. Some of the components that are not covered by the warranty include: laser tube, focus lens, reflection mirrors, and fuses.
* Please note that the 5 star rating system is setup in a way that if you leave less than a 5 stars means a failure in that category. Sellers are required to maintain thier star ratings over 4 to prevent any penalties. So once again, if you have any reason to not leave us 5 stars, please contact us so that we can earn them.
* Penalties: Item that has damage, used, or missing components: 30%
* Some items may qualify for return after the 7 day period, a 20% restocking fee will apply in addition to any other fee or penalties.
* Returns will not be accepted after 30 days
The Laser Engraver is not a toy. If used improperly, it can be dangerous or harmful. The software used to run the engraver requires some basic skills with computers. This engraver is tool in which it will take various times to learn depending on the person using it. Some installation and attachement of the components is required. We offer support in basic setup and basic engravings. Keep in mind that our User Manual is an evolving document, meaning that we are constantly improving it. To fully have this unit running, you will need a bucket to hold water, a computer, access to a window or opening for the exhaust duct, and a ground wire that connects to the building's ground. Everything else is included with your purchase. "
