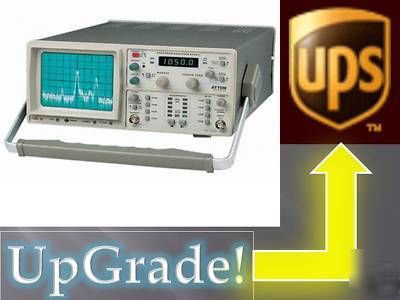

New atten spectrum analyzer AT5011A AT5011 a
AT5000 series spectrum analyzer will exceed 1Ghz(0.15~1050MHz) have the glancing or fine adjust center frequency with the 100KHz/grid~100MHz/grid span select, compose the simple frequency-domain. One 4 and 1/2 bit LED display can be selected for the center frequency and marking frequency reading.
Frequency range: 0.15~1050MHz
4 and 1/2 digital displays. (Center frequency, 0.1MHz resolution)
-100~+13dBm amplitude range, 20MHz, 400MHz center frequency span and 4 KHz video filter.
Tracking generator (only the ATTEN5011+)
Output amplitude :+0~-50dBm(50 )
Frequency range: 0.15 to 1050MHz
Center frequency display accuracy: 100kHz
Marker accuracy: 0.1% spans 100 kHz
Resolution of frequency display: 100 kHz (4.5 digit LED)
Frequency scans width accuracy: 10%
Frequency stability: better than 150 kHz/ hour
IF Bandwidth (-3dB): 400 kHz and 20 kHz;
Amplitude range: -100dBm to +13dBm
Screen display range: 80dB (10dB/div.)
Reference level: -27dBm to +13dBm (in 10dB steps)
Reference level accuracy: 2dB
Average noise level: -90dBm (20 kHz Bandwidth)
Distortion: < -55dBc of 2nd and 3rd harmonic
Third order intermod.: -70dBc (two signals > 3MHz apart)
Sensitivity: Better than -90dBm
Log scale fidelity: 2dB (without attn.) 500MHz
Input attenuator: 0 to 40dB (4 10dB steps)
Input attenuator accuracy: 1dB/10dB
Max. Input level: +10dBm, 25V DC (0dB attn.) +20dBm (40dB attn.)
Frequency scans width: 100 kHz/div. to 100MHz/div, in 1-2-5 steps and 0Hz/div. (Zero Scan)
AC220V Or AC110 ( please email us when your ordering)
