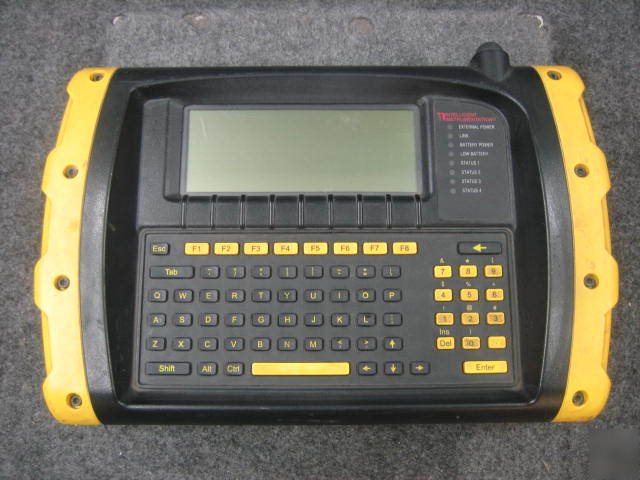

LANpoint CE.NET Fixed Mount Data Collection PC Blem
The LANpoint CE.NET Series offers open architecture for easy implementation and deployment into existing and future IT infrastructures. It is exceptionally rugged, has no moving parts, and can be environmentally sealed against dust and water. Easy to integrate, use and support, these data collection terminals are ideal for data capture and communications solutions for factory floor or other commercial environment.
640 x 240 VGA backlit LCD, true 350 nit
Sealed elastomeric, long-life industrial design with epoxy overcoat to protect legends from wear and tear
Standard Keyboard Configuration:
Function keys are programmable for use as soft keys/menu selectors/repetitive string entry
Industrial, high-impact plastic with protection features for keyboard and LCD display. Many mounting accessories available, including desk- or wall-mount Industrial hose-down, dust-proof, flush-mount and more
MIL-STD-810E, mechanical vibration (Method 514.4, Category 1 basic transportation) and (Method 514.4, Category 8 ground mobile). MIL-STD-810E, mechanical shock (Method 516.4, Procedure 1). SAE J 1455 Figures 6,7 & 8.
Windows NT/2000/2003/XP, TCP/IP
virtually any if using decoded scanner
Extended operating temp is standard: -20 to 55 C
17.2 - 28 VAC or 17.2 - 35 VDC
COM1, COM2, COM3 with jumper for +5VDC on all
External PS/2 keyboard and PS/2 mouse
PCMCIA Type I/II/III (for RF Ethernet card usually)
Two sets: +3.3 VDC, +5VDC and +12VDC accessory outputs
Eight LEDs visible on face of terminal:
- power, Ethernet link, battery power, low battery
plus four user-definable/programmable LEDs
