K.o. lee B2060B tool & cutter grinder, ball track tbl,
K.O. Lee B2060B TOOL & CUTTER GRINDER, BALL TRACK Tbl,

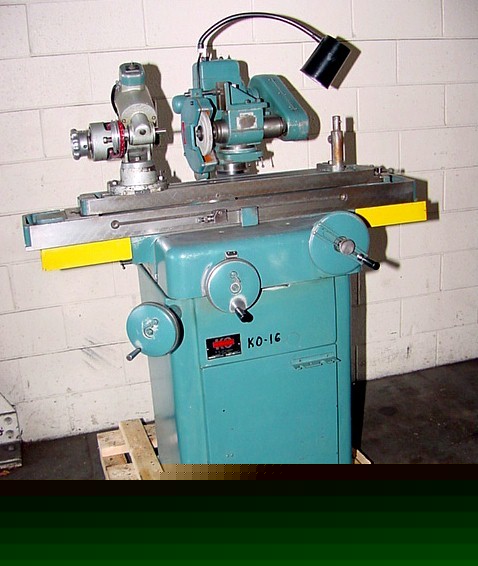

K.O. Lee B2060B TOOL & CUTTER GRINDER, BALL TRACK TABLE, PWR. WKHD.
** BALL TRACK TABLE FOR LOW EFFORT TABLE MOVEMENT **
MODEL: B2060B S/N: 19197-KG NEW: 1977
SWING OVER TABLE ............................. 8-1/4"
TABLE WORKING SURFACE ............... 5-1/4" X 37-1/4
FAST ................................. 2-13/16"
SLOW .................................... 9/16"
CROSS FEED .................................. 7 -1/4"
FEED PER REV. OF HANDWHEEL (.001" GRAD.).... 0.100"
VERTICAL MOVEMENT OF COLUMN ...................... 7"
FEED PER REV. OF HANDWHEEL (.001" GRAD.) ... 0.050"
COLUMN DIAMETER .................................. 4"
SHAFT TO TABLE ................... 3-3/4" / 10-3/4"
MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE OF STRAIGHT
WHEEL; DOVETAIL SLIDE NOT EXTENDED, SPINDLE 90 DEG.
TO TABLE ................................... 3-3/4"
WHEEL; DOVETAIL SLIDE EXTENDED, SPINDLE 90 DEGREES
TO TABLE ................................. 9-15/16"
TABLE SWIVELS (CALIBRATION: 3" PER FT., 15 DEG. EITHER
SIDE OF CENTER) ........................ 225 DEGREE
WHEEL HEAD SWIVEL ........................ 360 DEGREE
MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" .... 1-1/4"
MAX. CROSS FEED SURFACE GRINDING W/5" WHEEL ..2- 3/4"
(HIGH SPEED WHEELHEAD) ......... 3450 TO 18,400 RPM
APPROXIMATE MACHINE WEIGHT ................ 1,180 LBS
BALL TRACK TABLE FOR EASY, LOW EFFORT TABLE MOVEMENT
K.O. LEE B955 WHEELHEAD (1/2 H.P./3/60/230-460 VOLTS)
- PERMITS USING 1/4" TO 6" DIAMETER WHEELS
DRAW BAR ALLOWING USE OF 5C COLLETS
** ORIGINAL PAINT!; EXCEPTIONAL CONDITION & APPEARANCE **
