1602 lcd display usb edition iii smartie module pc case

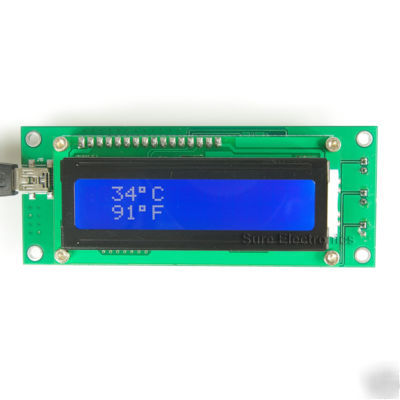

1602 LCD Display Board with UART Based USB (Edition )
This board can be used to display the system information of your computer, such as Everest status, MBM status (Your CPU temperature, fan/cooler speed, etc.), BBC world news (or any other RSS feeds), WinAmp status (currently playing tracks title, length, position, etc), network status (speed, total bytes, etc), CPU speed, free disk space, memory usage, E-mail details, game status and many others. In addition, users may adjust the contrast ratio of LCD display and backlight brightness.
1. Integrate a 16*2 (blue background white character) LCD as the main display
2. Can be used to display info from serial COM port with tailored application- LCD Smartie or Sure-LCD and its displaying pattern can be adjusted
3. With Sure-LCD, ambient temperature can be obtained and displayed in either F or .
4. Allows you to edit memorandum (also called tips) and display tips continuously.
5. One USB A to mini USB AB cable and one USB mainboard extension cord are provided, both of which can be used for power connection and communication
6. 3 pieces LED indicator cables are provided to indicate power, data receiving and transfer.
7. Can readily be fixed into PC case
8. Provides 8 character libraries that can be redefined by users
1. Operation Temperature: 0 to +60
2. Storage Temperature: -10 to 70
3. Outline Dimension 105.5mm*41.9mm
To display system and other editable information
3. USB mainboard extension cord x1
5. Cable harness-based LED indicators X3
1602 LCD Display Board USB Edition I II&III
Compatible with LCD Smartie only
USB-to-serial port converter CP2102
1. Serial COM port: USB mini B,USB 9-pin,
Compatible with LCD Smartie & Sure-LCD
Thermo sensitive resistor for detecting ambient temperature
3. Indicator ports for power,data transfer and receiving
4. A 3-pin 2510 socket for further use
