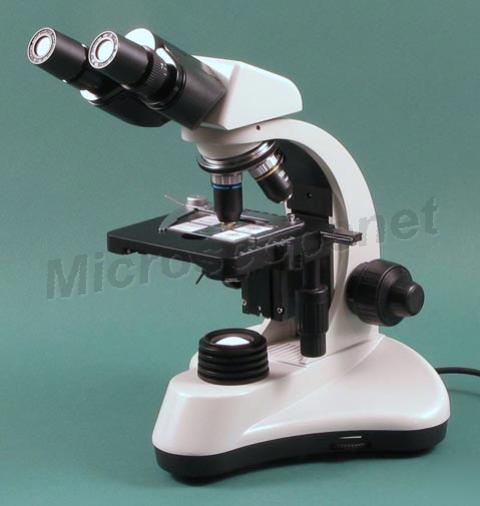

Advanced research level compound microscope 40X-1600X
Professional Biological Binocular Microscope
* 30 inclined 360 rotatable binocular head
* Reversed quadruple nosepiece perfect for labs, clinics, universities
* Hinged eye tubes with compensation free interpupillary distance adjustment
* Variable intensity transmitted light
* Extremely high resolution images over a wide field view
* Coaxial coarse and fine focus adjustment with adjustable tension control
* Long focus adjustment distance
* Stage upward stop protects objectives and slides
* Large stain-resistant double layer stage can hold two parallel slides
* Head: 30 Inclined 360 rotatable binocular
* Nosepiece: reversed quadruple
* Transmitted (lower) illuminator: 6V/20W
* Stage: mechanical double layer stage with long clips for holding two parallel slides. Stage size: 5-1/2" x 5-1/2" (140mm x 140mm)
* Stage vertical stroke: 1-5/16" (34mm) with upper stop
* Focus adjustment: Coaxial coarse & fine knobs on both sides with adjustable tension control
* Power supply: 110V/60Hz (US and Canada)
* Dimension: 12-1/2" x11-1/2" x 15-3/4" (32cmx29cmx40cm)
* Body net weight: 13lb (6.34kg)
* Package volume equivalent weight: 32lb (14.5kg)
* Binocular microscope with 4 DIN objectives
* Eyepiece: a pair of WF10X and a pair of P16X
* focus knob tension adjusting wrench
