One head timer piston pump filler filling machine

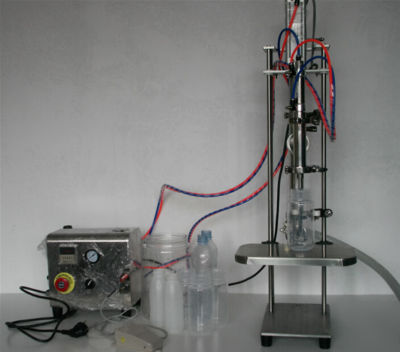

This is a brand new Single Head Positive Displacement Piston Pump Timer Filler. SPTF1-8PV made of stainless steel,will be perfectly filling your containers with sauces, creams or liquids, And it has very reliable features and is very easy to use.
You just hook this filler up to your compressor and start filling and put the intake hose directly into your tank or put material into hopper, depress the foot pedal to do fill. The material is filled into your container accordingly. Adjusting the filling volume will be controlled by setting the timer without tools and no need to exchange any parts.
The product is drawn by piston pump, then is dispensed through a positive valve out into the your container. you can fill a wider range of container sizes with timer setting.
Fill thin to viscous products without suspended solids, chunks, seeds and particles.
* Tool free strip-down and assembly for easy wash-down ,includes psotive valves and piston pump.
Food and pharmaceutical quality stainless steel ss316, silicon, Teflon, contact parts ,Stainless steel sanitary positive valves, connection "T's", and piston pump are ideally suited for food, pharmaceutical and hot liquid filling.
Reliable stainless steel Piston Pump
Flexible to move the filler to a confortable place to be filled;
Tool-free adjustable the height of filling table and filling head
* Proper for various bottles to be filled;
* Tool-free and easy to adjust filling volume control and selectable variable fill speeds, you can fill a wider range of container sizes with timer setting.
* Easy to maintain, easy to use.
Type to be filled is foods, chemicals, cleaners etc. with the viscosity among thin, meium and viscous;
Temperature of product during filling: to about 150 ;
Adjustable height of the filling nozzle :355mm;
Filling volume setting: from min, 8ml/0.2 sec to max 29997 L/99.99 hrs when the air pressure is 0.4Mpa;
Piston pump capacity:8L/min.(0.6MPa, ID16 nozzle)
Working air pressure required: 0.2-0.6MPa
Overall(mm):300x280x240 controlling box,400x295x(720-930)filling station.
