Bakers pride convection synchronized doors gas oven

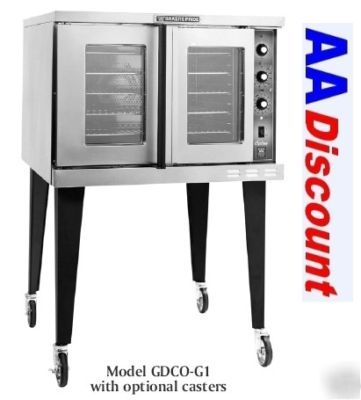

BAKERS PRIDE CYCLONE SERIES GAS CONCECTION OVEN WITH DUAL SYNCHRONIZED DOORS
The oven interior measures 29" wide (737mm) by 20" high (508mm) by 22 1/4" deep (567mm). The cooking chamber is porcelain enamel over heavy gauge steel with removable 11- position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty adjustable chrome-plated racks. The oven exterior measures 39" wide (991mm) by 39" deep without handles (991mm) and 41 3/8" deep with handles
(1051mm) by 32" (813mm) high. Front, top, sides and trim are constructed with stainless steel. Single oven legs are 31 3/8" tall (797mm) with casters and 27 5/8 (702mm) with adjustable bullet feet finished with Durable Black Powder Coating.
Dual doors are 60/40 split-type with double-pane thermal glass, synchronized operation, stainless steel seals and single mounted "Cool Touch" handle. Doors are fabricated with stainless steel inside-and-out, and fully insulated with 2" of industrial grade insulation.
Energy efficient 60,000 BTUH oven combination direct/indirect
forced air heat system in natural or LP gas
Electronic temperature control
Double-pane thermal glass door windows
60-Minute continuous ring timer with manual shut-off
150 F (65 C) to 550 F (288 C) temperature range
1/4 HP air-cooled two-speed fan motor
Burners-on and temperature-ready indicator lights
Porcelain enamel oven interior
11-Position removable rack guide with 1 5/8" spacing
5 Heavy-duty, positive-stop, chrome-plated wire racks
Stainless steel front, top & sides
Black Powder Coated legs with adjustable bullet feet
Stainless steel, 60/40 split synchronized operation and single
Front mounted, hinged control panel for easy service access
Heavy-duty industrial grade insulation in top, sides, back & doors
Limited 2-year parts, labor & door warranty
