125X125 smt bga irda desoldering rework station+1 bulb

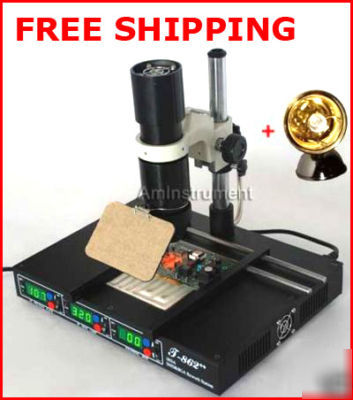

125x125 Infrared SMT SMD BGA Rework Station IRDA Welder + 1 extra bulb
* Infrared heating has good penetration power. When compared with tradition soldering/desoldering station using hot air (sirocco), this infrared desoldering machine greatly reduces demage caused by heat stress
* Don't need desoldering tools. This machine can desolder components of 5/8"x5/8" to 1.8"x1.8" (15x15mm to 45x45mm)
* This machine has 650W pre-heating system. Pre-heating area is 5"x5" (125x125mm)
* Precise infrared targeting reduces damages to other parts or components of the circuit. Especially suitable for desoldering / reworking on small BGA components
* Two infrared bulbs included
* Heating Area: 1.8"x1.8" (45x45mm)
* Pre-heating Area: 5"x5" (125x125 mm)
* Working Area: 9.2"x13.6" (230x345 mm)
* 1 infrared heating lamp with 1 additional bulb (200311903127)
* 3 lenses with different sizes: 28mm, 38mm and 48mm
* 1 PCB rail fixture 9.8 x 9.4 inch (25 x 24cm)
* 1 piece of aluminum foil
