Tpei model 9UME free rotor continuous mixer 1000 hp
TECHNICAL PROCESS & ENGINEERING MODEL 9UME FREE ROTOR CONTINUOUS MIXER DESIGNED TO PROCESS 7500 LBS PER HOUR
Advantages of Standard Free Rotor Mixer:
Three temperature controls zones:
- Similar to setting the temperature profile of an extruder; and,
- Improved temperature control of fowming agents, flame-retardants,
organic pigments, and other heat-sensitive additives
- Test run a set of #7 rotors in the morning and run production after
- You can change rotors without disturbing the water-end or drive-end
- Similar to the single screw extruders, there is no need to open the
bearing house to change our mixer rotors
Internal connecting gears for improved torque transfer
Visco Seals in "both" water and drive ends for improved seal and bearing life
Advantages of the "E" Machine (Extended) Free Rotor Mixer:
- Two additional conveying flights (acts like putting the ram down on a
- Increased throughput pf up to 20%
- Larger feed throat capacity to accommodate fluffy, hard-to-feed materials
Whatever your needs, if we don't stock it, we can build itITEM M2:
A new SCR motor drive matched to the above motor will be supplied. A 1000 KVA isolation
transformer will be suppplied for the mixer motor.Item M5:
The output speed will be approx. 300 RPM.Item M8:

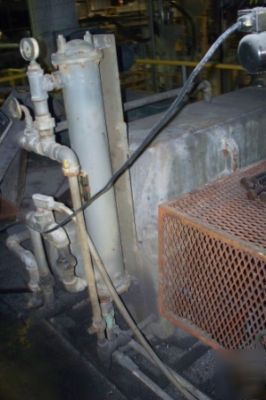

Air-purged dust seals will be provided
GENERAL SPECIFICATIONS: (cont.)Item M9:
The feed throat will be steel fabrication doweled and bolted to the connecting
gear housing. It will contain C-type liners and be cored for cooling. It
will incorporate technical process & engineering's extended feed throat
design. This will allow the feed throat opening to accept the larger material

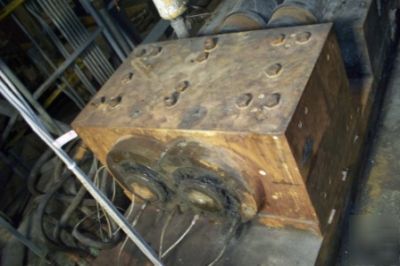

The mixer body will be a steel fabrication with liners, cored for water-cooling.
The mixer body will be divided into two temperature zones. We will include two
process-plug holes for venting or insertion of a mixing dam. We will supply
two plugs and one dam for ports. It will be furnished with electric heating
and water-cooling. A vent port plunger will be supplied to keep the vent
port free of material. See option M10A for spare body liners.Item M11:
The orifice assembly will be a hardened and ground steel gate, operated
by an Electro-mechanical actuator. A porition indicator allows the orifice to be
moved to and reset at a standard position for each of your particular products.

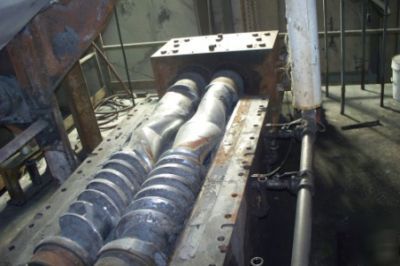

The orifice will be Teflon lined. Item M13: Dust Seals The outlet of the mixer will be equipped with "Visco" type dust seals. Item M14: Rotors One set style #7L/R; #15S/R two-piece rotors will be made of high strength alloy-steel, chrome plated for high abrasion resistance, and cored for water-cooling.

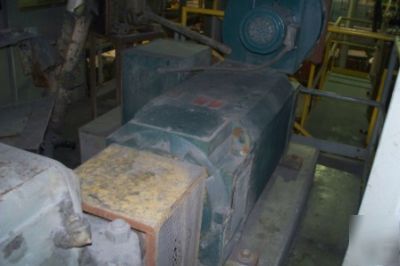

A new reliance AC motor can be supplied. IT will be a 1000 HP AC motor.
This motor will deliver full torque at 300 RPM with a 1000 HP rating. It
will deliver full torque under 300 RPM with an 850 HP rating. The 850 HP
ok for start-up rating will be enough to start the mixer. We will supply
it with a Liqui-flow driveAdd for this option $23,265.00
A spare set of rotors can be provided. The rotors will be #7/#15 combination.

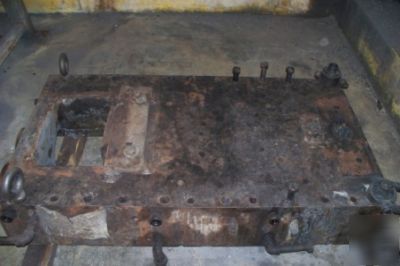

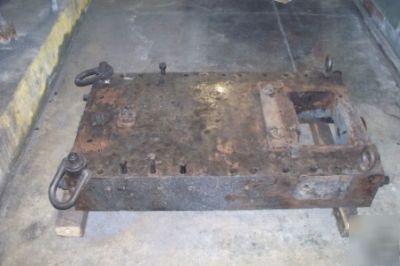

A new feed throat insert will be provided to accept the hit melt strip
from the continuous mixer. The insert will be bolted into place be
removing the current ram stuffer and installing the insert. It will
incorporate Technical Process & Engineering's "J" block design for
superior feeding of the hot melt material. As such it will provide a
stable output to the Pelletizer with minimal pressures fluctuations
providing other variables, such as feed rate, temperature, etc., are
held constant. The feed throat will be water-cooled.
Electrically heat extruder feed throat insert.

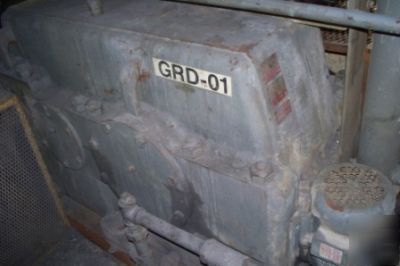

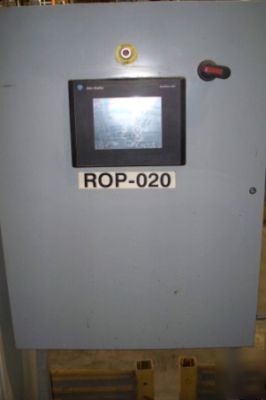

Touch screen panel, 1,000 KVA Transformer, upgraded gearbox for 1,000 HP
motor, even speed gearing, #7/#15 rotor combination, vent port plunger,
teflon lined orifice, pneumatic type dust seals, extended feed throat,
electrically heated two zone water cooled body, extended rotor design,
two-piece rotor design, split water end frame, electric orifice actuater w/readout, bearing temperature monitor, t-layout
