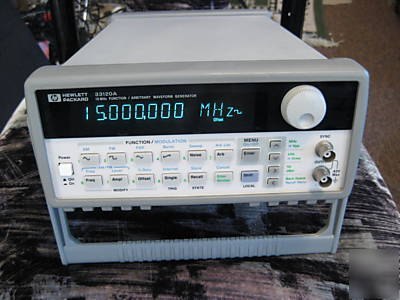

Hp agilent 33120A waveform function generator opt 1
OPTION 1 INCLUDED ON THIS UNIT a 600$ upgrade.
THIS IS NEWLY REFURBISHED and Has a Brand new calibration from last year. I had about 10 of these calibrated last year and Ive sold a few of them since then, The cal date will show last year however this actual unit has not been used since calibration, see below:
Calibration was performed over a year ago however, this unit has not been powered on since that calibration , therefore it will still be considered under calibration for at least one year after it is put back in to use. These units are rated to cal yearly based solely upon the average ON hours the unit will go thru in a year. If the unit has not been used since last calibration,then the cal period will start from the day that it is put into normal use which will be the first day you receive the unit. If a unit that has been calibrated has sat on a temperature constant area for over 5 years , it will need to be recalibrated again. If it has been used under normal conditions since last calibration, then it should be calibrated within 1-3 years. The components only age if there is electricity running thru them constantly. as long as the unit is kept in a constant temperature environment the components will not age significantly enough to recal for at least 5 years since last cal. I hope this clarifies things. Ive had some questions regarding this. thus the lengthy explanation.
calibration should last a good 3 more years or 2 years if used extensively. TESTED WORKING PERFECT! 60 day warranty!
. new this unit costs about 3000$. so this is an amazing deal!
the unit has no major cosmetic flaws and no functional flaws whatsoever. works perfect. Passes startup test and internal self test every time! This unit has option 1 which adds 4 things,
The Phase-Lock assembly (Option 001) adds the following capabilities
to the 33120A Function / Arbitrary Waveform Generator:
External clock input and output connectors on the rear panel.
These connectors allow synchronization between multiple 33120As
or to an external 10 MHz clock signal.
Phase offset control from the front panel or over the remote interface.
Simultaneous hardware triggering of multiple Agilent 33120As.
Option 001 allows the 33120A to generate a trigger pulse from
the Ext Trig terminal which can be routed to other instruments in
2 ppm timebase 10 times the frequency stability of the standard
this unit is 110-240 v compatible.
Comes with 30 day ROR warranty!
see pics below of tests with my scope.
